| Product Features |
• >140lm/w.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current/ Over temperature
• Meanwell driver and Osram led chip.
• IP65 can be outdoor using.

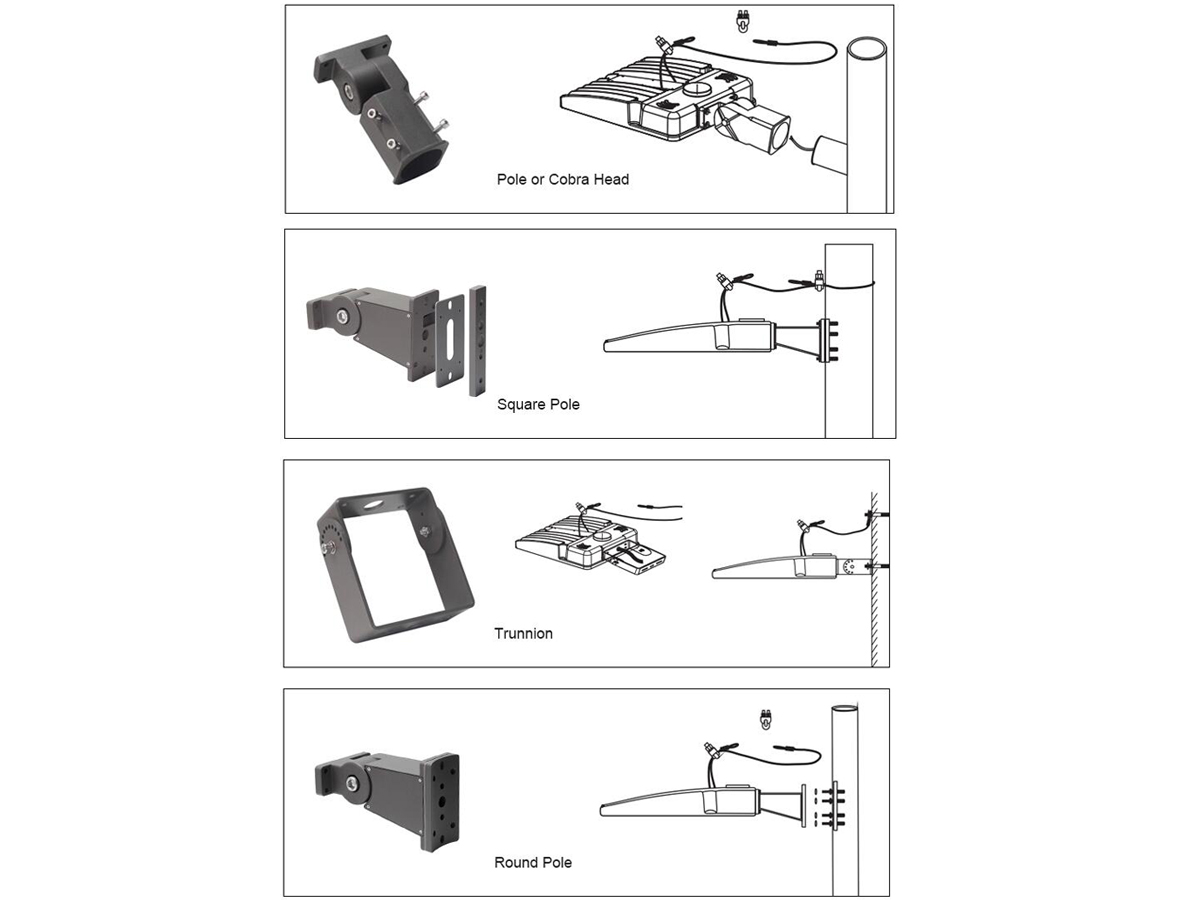

• 4 type mounting brackets
• 3 distribution type:
Type II short, Type III short, Type Vs.
| Dimension |
| Technical Specifications |
| Item No. | SBL-100W |
| Rated Power | 100W |
| Input Voltage | 100-277Vac or 200-480Vac. |
| Input Current | 0.72A / 115VAC ; 0.38A / 230VAC ; 0.32A / 277VAC |
| Power Factor | PF>0.95 |
| Power Efficiency | >93% |
| Light Source/Count | Osram led |
| Lamp Base | Wires |
| LED Luminous Efficiency | >140lm/w |
| Luminous Flux | 14,700lm |
| Color Temperature | 3000k, 4000k, 4500k, 5000k, 5700k, 6500k |
| Color Rendering Index(CRI) | Ra>83 |
| LED Emitter Life | >50,000hours |
| Replacement | 250-300w MH, HPS |
| Working Environment | Outdoor Lighting |
| Operating Temperature | -40~50℃ |
| Warranty | 5 years factory warranty |
| The Dimensions | 336*322mm/ 13.2*12.7in |
| Application |
This LED light is widely used for parking lot lighting, and other places where need energy saving and high color rendering index lighting.
| The relevant product parameters |
| Item No. | Rated Power | Power Factor | Replacement | Luminous Flux | LED | CRI |
| SBL-80W | 80W | PF>0.95 | 175-250w MH, HPS | 12,000lm | Osram led | Ra>83 |
| SBL-100W | 100W | PF>0.95 | 250-300w MH, HPS | 14,700lm | Osram led | Ra>83 |
| SBL-120W | 120W | PF>0.95 | 300-400w MH, HPS | 17,500lm | Osram led | Ra>83 |
| SBL-150W | 150W | PF>0.95 | 350-450w MH, HPS | 21,500lm | Osram led | Ra>83 |
| SBL-300W | 300W | PF>0.95 | 1000-1200w MH, HPS | 43,000lm | Osram led | Ra>83 |
