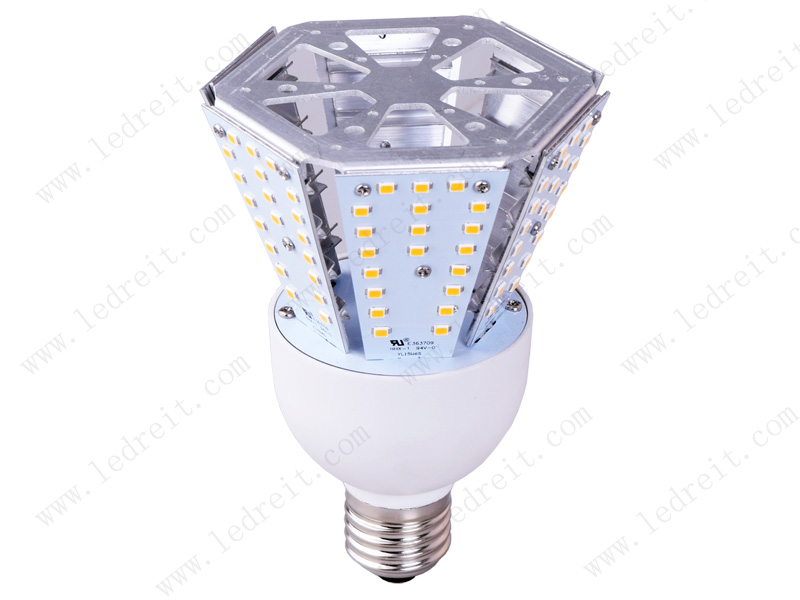

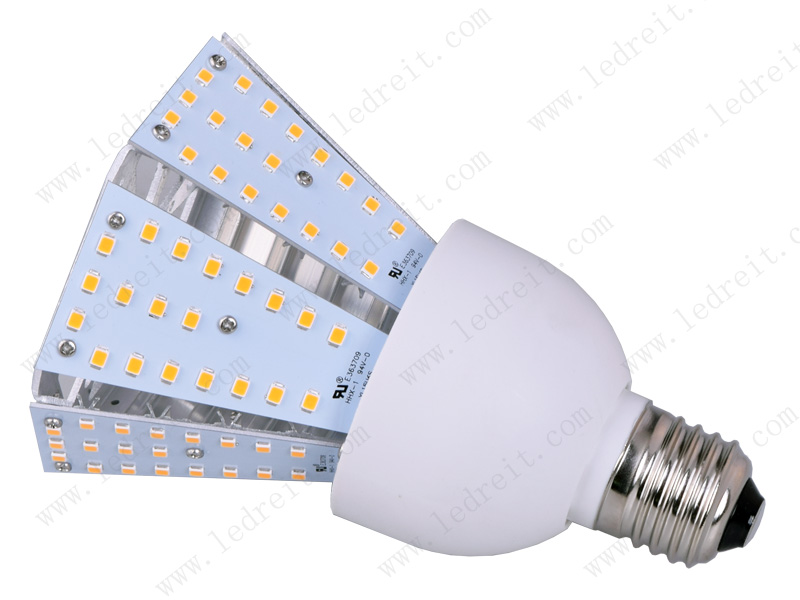

| Features |
• >125lm/w, 150lm/w is available.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature(Reduce the current).
• Aluminum heat sink with fins.
• Sealing glue helps improve the fixture's efficiency while dissipating heat.
• Clear or diffused or no cover available.
| Technical Specifications |
|
Model NO.
|
YL-15W8S
|
|
Rated Power
|
15W
|
|
Input Voltage
|
100-277Vac or 200-480Vac
|
|
Input Current
|
0.64A / 115VAC ; 0.32A / 230VAC ; 0.3A / 277VAC
|
|
Power Factor
|
PF>0.95
|
|
Power Efficiency
|
>88%
|
|
Beam Angle
|
360°
|
|
Lamp Base
|
E27/E26
|
|
LED Luminous Efficiency
|
>125lm/w, 150lm/w is available
|
| Luminous Flux(125lm/w) | 1,900lm |
|
Luminous Flux(150lm/w)
|
2,250lm
|
|
Color Temperature Standard
|
WarmWhite: 2,700 3,500 K
|
|
Natural White: 4,000 4,500 K
|
|
|
Cool White: 5,500 6,700K
|
|
|
CRI
|
Ra>83
|
|
LED Emitter Life
|
50,000hours
|
|
Replacement
|
30W-50W HID,CFL
|
|
Working Environment
|
Indoor/Outdoor Lighting
|
|
Operating Temperature
|
-40~50℃
|
|
Dimensions
|
Φ90*136mm/Φ3.6*5.4inch
|
|
Warranty
|
5 years factory warranty
|
|
Packing
|
1pc/Box, 12pcs/Carton
|
| Advantage |
| Application |
Warehouse, indoor lighting, street landscape.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting
| The relevant product parameters |
|
Model NO.
|
YL-15W8S | ||||||
|
Rated Power
|
80W
|
60W
|
50W
|
40W
|
30W
|
20W
|
15W |
|
Luminous Flux(125lm/w)
|
9,800lm
|
7,500lm |
6,200lm
|
5,100lm
|
3,800lm
|
2,600lm
|
1,900lm |
|
Luminous Flux(150lm/w)
|
12,000lm | 9,000lm | 7,500lm | 6,000lm | 4,500lm | 3,000lm | 2,250lm |
|
Replacement
|
275-300w MH,HPS | 225W-250W MH/HPS |
175W-225W MH/HPS
|
125W-150W MH/HPS
|
75W-105W MH/HPS
|
50W-75W MH/HPS
|
30-50W HID,CF |
| Dimensions |
Φ167*195mm Φ6.6*7.7inch |
Φ128*190mm Φ5.0*7.5inch |
Φ128*190mm Φ5.0*7.5inch |
Φ90*136mm Φ3.6*5.4inch |
|||
|
Power Factor
|
PF>0.95
|
||||||
|
Input Voltage
|
100-277VAC
|
||||||
|
Power Efficiency
|
>88%
|
||||||
|
Beam Angle
|
360°
|
||||||
|
Lamp Base
|
E40/E39, E27/E26, Ex39
|
E27/E26 | |||||
|
LED Luminous Efficiency
|
>125lm/w, 150lm/w is available
|
||||||
|
Color Temperature Standard
|
WarmWhite: 2,700 3,500 K
|
||||||
|
Natural White: 4,000 4,500 K
|
|||||||
|
Cool White: 5,500 6,700K
|
|||||||
|
CRI
|
Ra>83
|
||||||
|
LED Emitter Life
|
50,000hours
|
||||||
|
Working Environment
|
Indoor/Outdoor Lighting
|
||||||
|
Operating Temperature
|
-40~50℃
|
||||||
|
Warranty
|
5 years factory warranty
|
||||||
|
Packing
|
1pc/Box, 12pcs/Carton
|
||||||
