• >120lm/w.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current/ Over temperature
• Aluminum heat sink.
• Meanwell driver and Osram led chip.
• IP65 can be outdoor using.
| Item No. |
WP-60W |
| Rated Power |
60W |
| Input Voltage |
100-277Vac or 200-480Vac. |
| Power Factor |
PF>0.95 |
| Light Source/Count |
Osram led |
| LED Luminous Efficiency |
>120lm/w |
| Luminous Flux |
7,200lm |
| Color Temperature |
3000k, 4000k, 4500k, 5000k, 5700k, 6500k |
| Color Rendering Index(CRI) |
Ra>83 |
| LED Emitter Life |
>50,000hours |
| Replacement |
175-250w MH, HPS |
| Working Environment |
Outdoor Lighting |
| Operating Temperature |
-40~50℃ |
| Warranty |
5 years factory warranty |

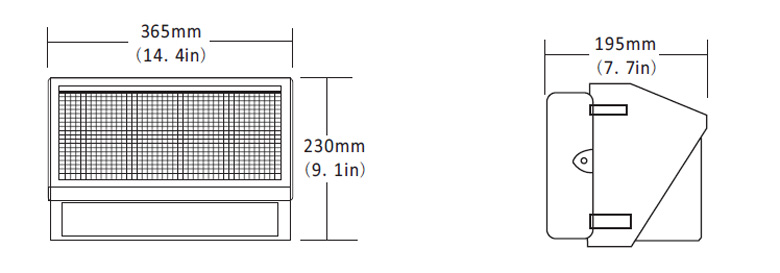

| The Dimensions |
365*230mm/ 14.4*9.1in |

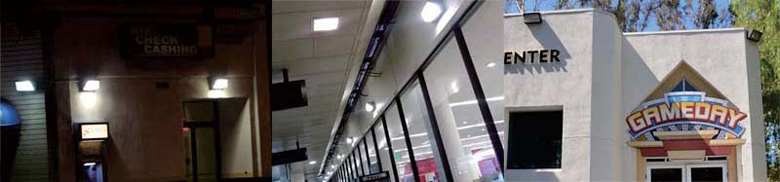

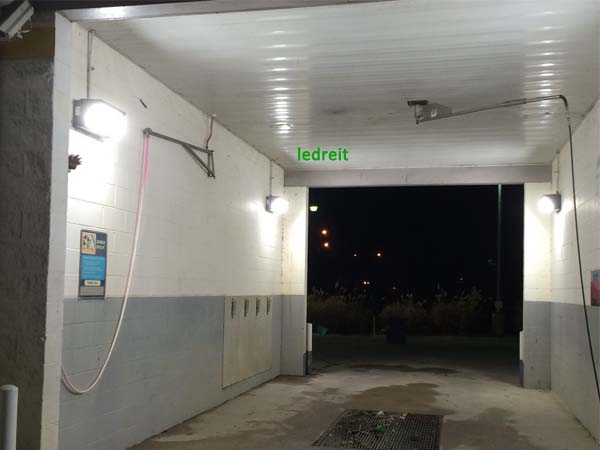

Lighting building facades, Parking areas/ garages, Loading areas
Warehouse / Shopping Malls / Gym indoor/ Outdoor lighting
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need reliable safety and security
| The relevant product parameters |
| Item No. |
Rated Power |
Power Factor |
Replacement |
Luminous Flux |
LED |
CRI |
| WP-40W |
40W |
PF>0.95 |
75-105w MH, HPS |
4,800lm |
Osram led |
Ra>83 |
| WP-60W |
60W |
PF>0.95 |
175-250w MH, HPS |
7,200lm |
Osram led |
Ra>83 |
| WP-80W |
80W |
PF>0.95 |
250-300w MH, HPS |
9,600lm |
Osram led |
Ra>83 |
