| Product Features |
• >130lm/w.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature.

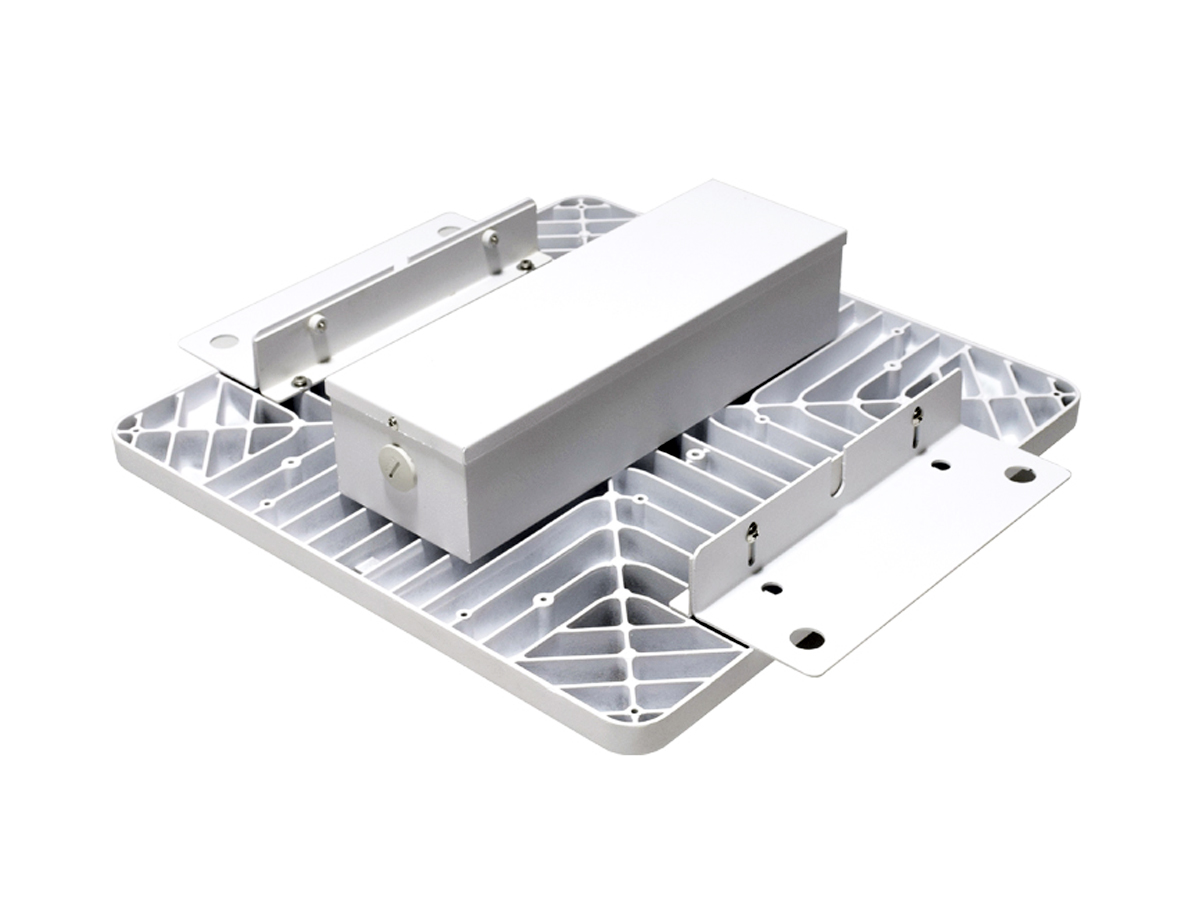

• 3 type mounting brackets.
• Meanwell driver and Osram led chip.
• Clear or diffused or no cover available.
| Mechanical Specification (mm) |
| Technical Specifications |
| Item No. | GSL-100W |
| Rated Power | 100W |
| Input Voltage | 100-277Vac or 200-480Vac |
| Power Factor | PF>0.95 |
| Beam Angle | 120 degree |
| Light Source/Count | Osram led chip |
| Lamp Base | wires |
| LED Luminous Efficiency | >130lm/w |
| Luminous Flux | 13,000lm |
| Color Temperature Standard | 2700-6700k |
| Color Rendering Index(CRI) | Ra＞83 |
| LED Emitter Life | 50,000 hours |
| Replacement | 250-300w MH, HPS |
| Working Environment | Indoor/Outdoor Lighting |
| Operating Temperature | -40~50℃ |
| The Dimensions | 280*280mm（11*11inch） |
| Applications |
This LED light is widely used for gas station lighting, and other places where need energy saving
and high color rendering index lighting.

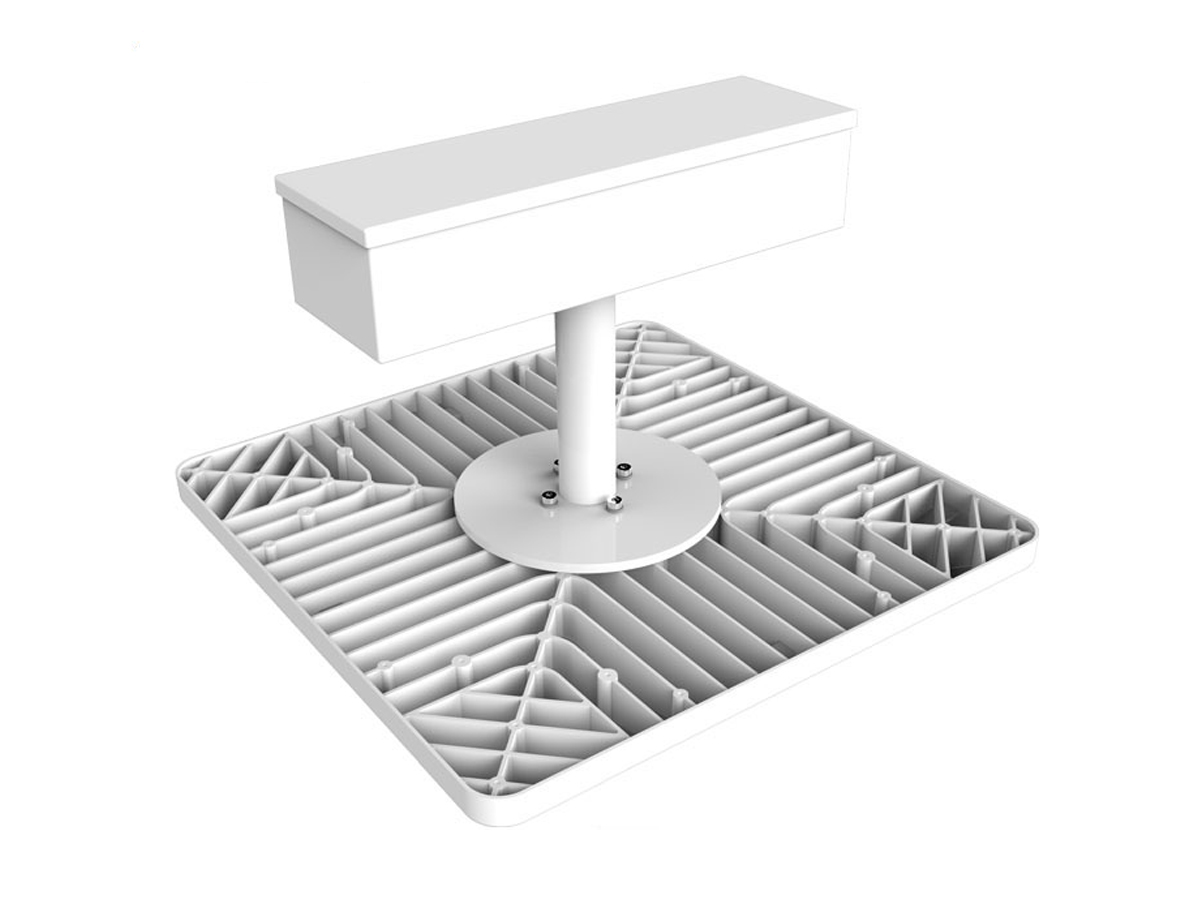

| Installation |
| The relevant product parameters |
| Item No. | Rated Power | Input Voltage | Power Factor | Replacement | Luminous Flux | CRI |
| GSL-60W | 60W | 100-277VAC | PF>0.95 | 105-175w MH, HPS | 7,800lm | Ra>83 |
| GSL-80W | 80W | 100-277VAC | PF>0.95 | 200-250w MH, HPS | 10,400lm | Ra>83 |
| GSL-100W | 100W | 100-277VAC | PF>0.95 | 250-300w MH, HPS | 13,000lm | Ra>83 |
| GSL-120W | 120W | 100-277VAC | PF>0.95 | 300-400w MH, HPS | 15,600lm | Ra>83 |
| GSL-150W | 150W | 100-277VAC | PF>0.95 | 350-450w MH, HPS | 19,500lm | Ra>83 |
