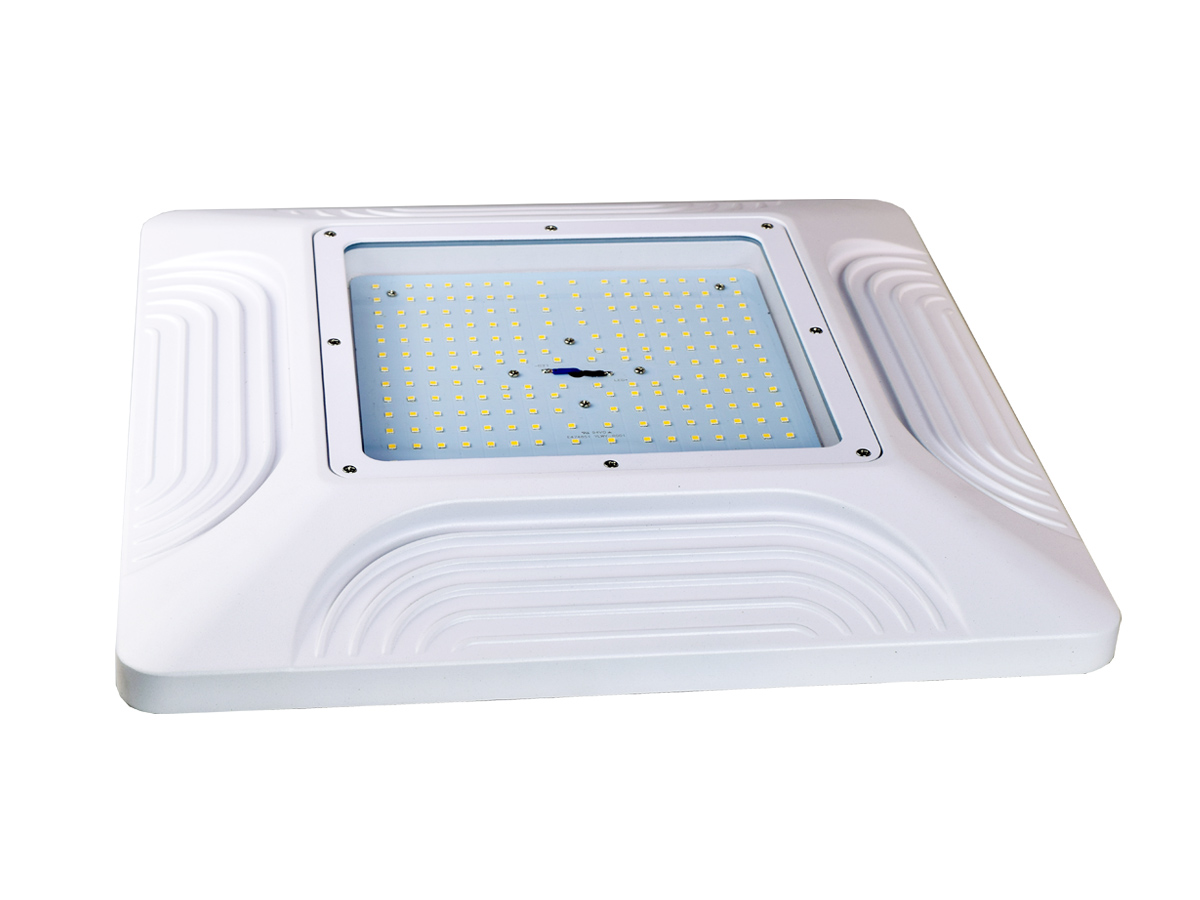

ETL DLC 80W LED Gas Station Light
led gas station light Features


Product Features

• >130lm/w.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature.

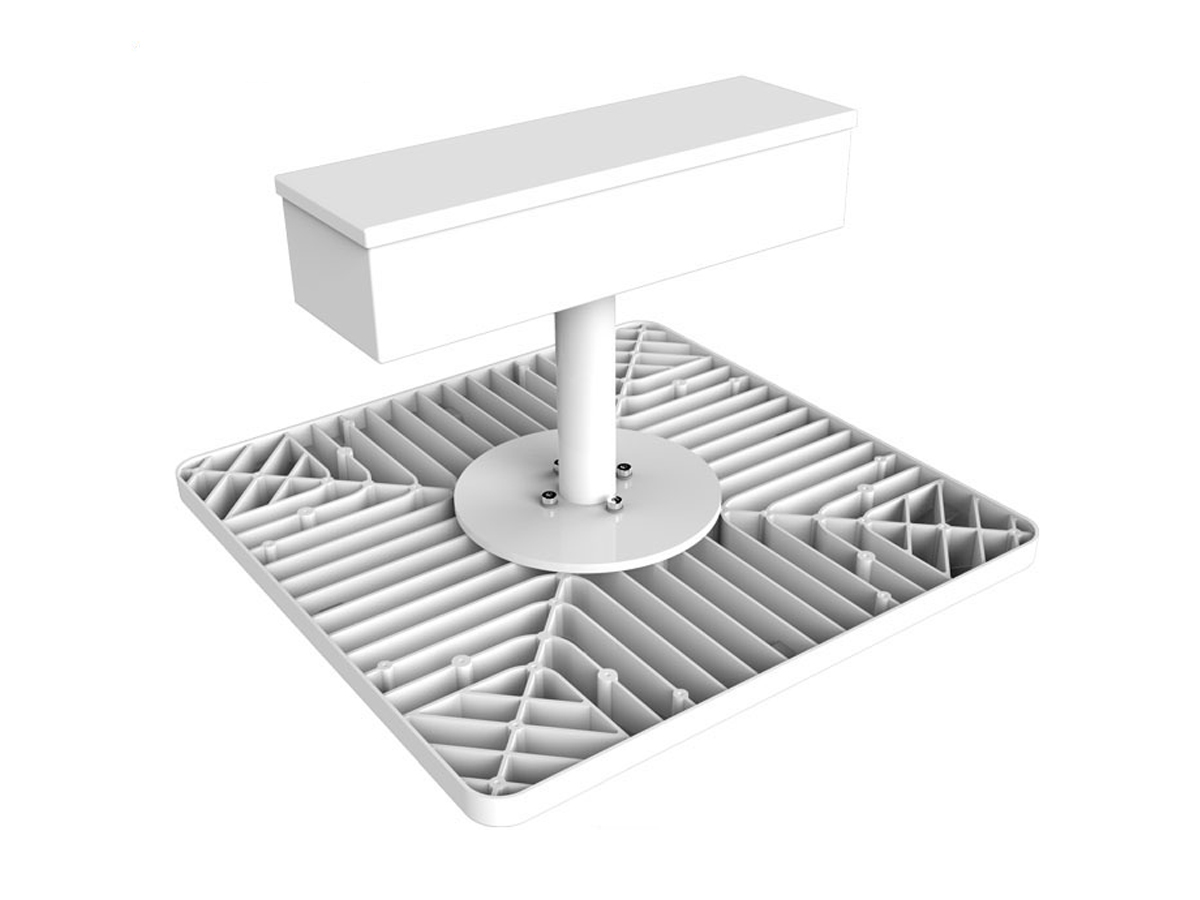

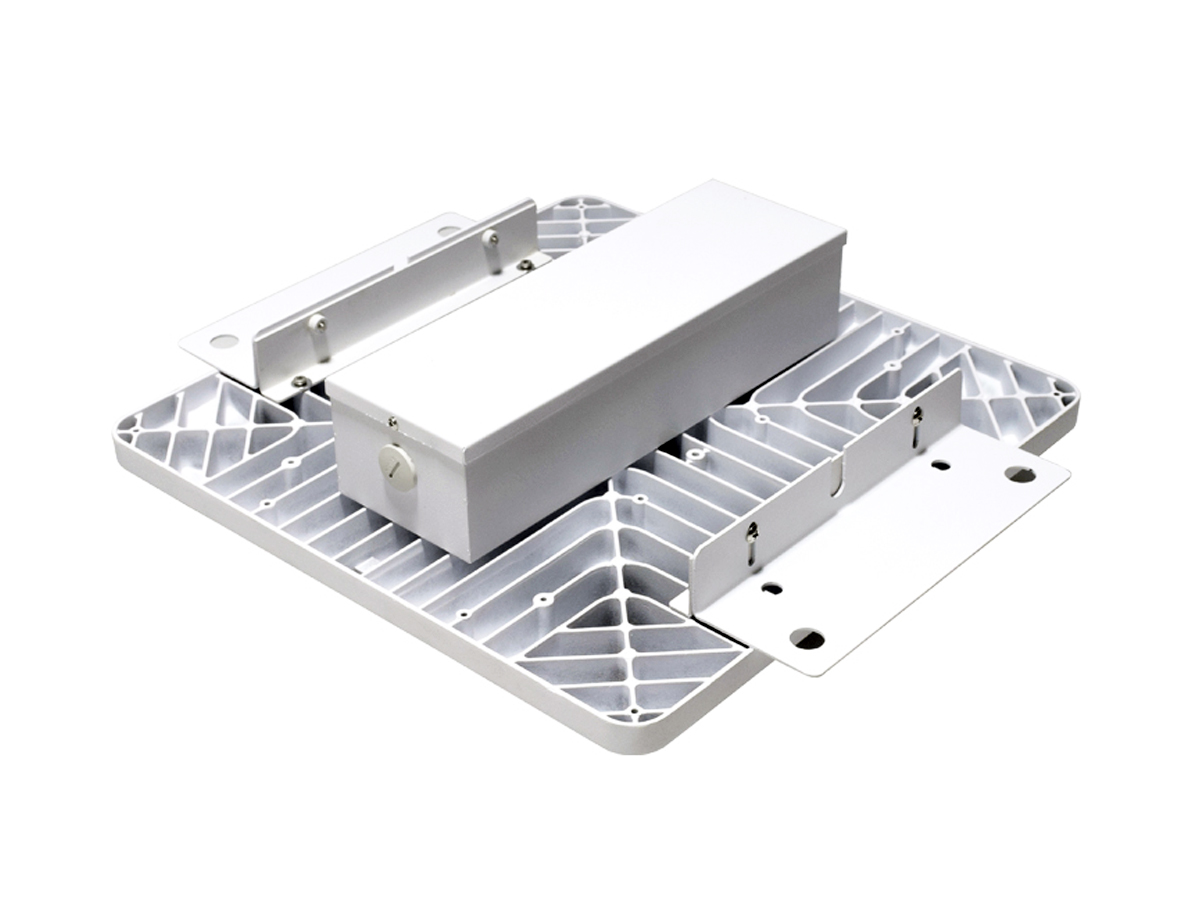

• 3 type mounting brackets.
• Meanwell driver and Osram led chip.
• Clear or diffused or no cover available.


Mechanical Specification (mm)

led gas station light led gas station light Mechanical Specification

Technical Specifications
Item No. GSL-80W
Rated Power 80W
Input Voltage 100-277Vac or 200-480Vac
Power Factor PF>0.95
Beam Angle 120 degree
Light Source/Count Osram led chip
Lamp Base wires
LED Luminous Efficiency >130lm/w
Luminous Flux 10,400lm
Color Temperature Standard 2700-6700k
Color Rendering Index(CRI) Ra>83
LED Emitter Life 50,000 hours
Replacement 200-250w MH, HPS
Working Environment Indoor/Outdoor Lighting
Operating Temperature -40~50℃
The Dimensions 280*280mm(11*11inch)



This LED light is widely used for gas station lighting, and other places where need energy saving
and high color rendering index lighting.

led gas station light Applications



led gas station light Installation led gas station light Installation


The relevant product parameters
Item No. Rated Power Input Voltage Power Factor Replacement Luminous Flux CRI
GSL-60W 60W 100-277VAC PF>0.95 105-175w MH, HPS 7,800lm Ra>83
GSL-80W 80W 100-277VAC PF>0.95 200-250w MH, HPS 10,400lm Ra>83
GSL-100W 100W 100-277VAC PF>0.95 250-300w MH, HPS 13,000lm Ra>83
GSL-120W 120W 100-277VAC PF>0.95 300-400w MH, HPS 15,600lm Ra>83
GSL-150W 150W 100-277VAC PF>0.95 350-450w MH, HPS 19,500lm Ra>83
