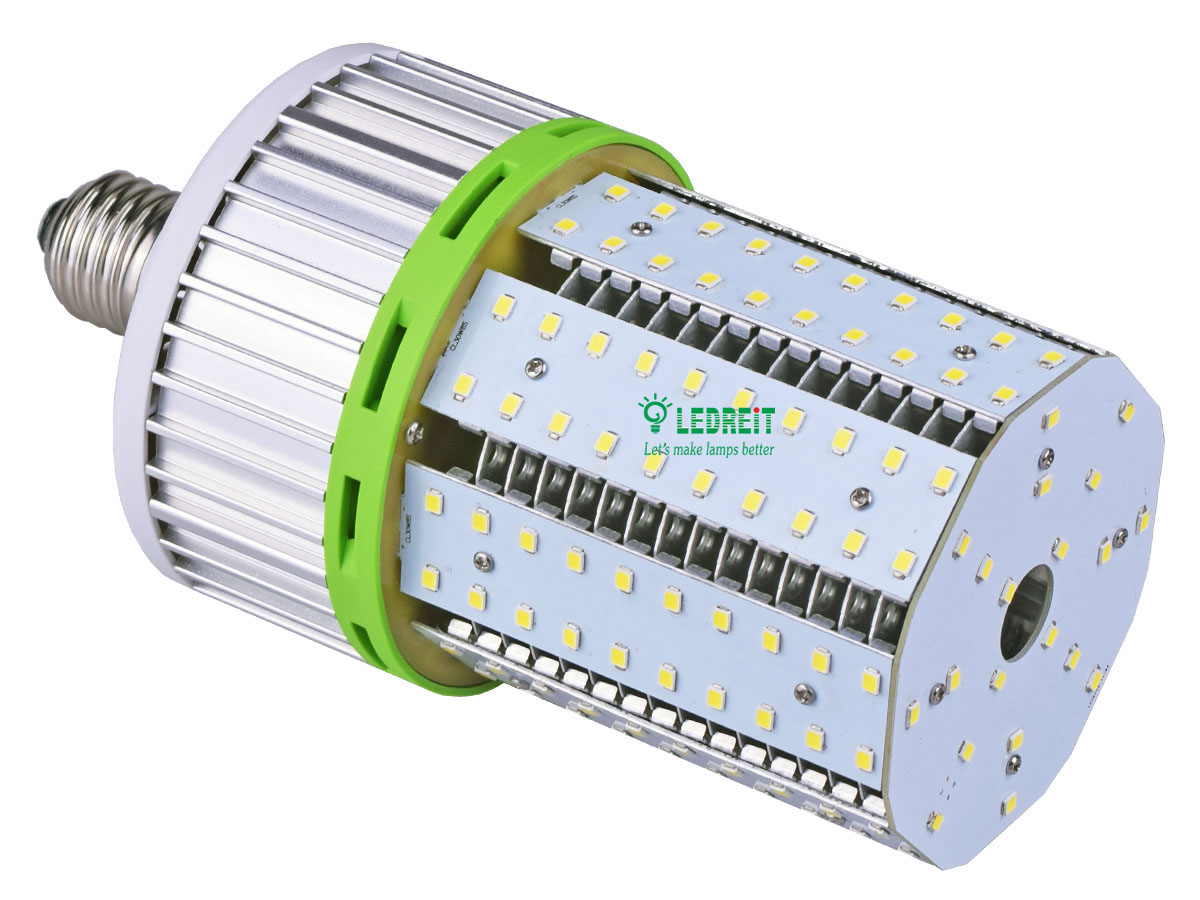

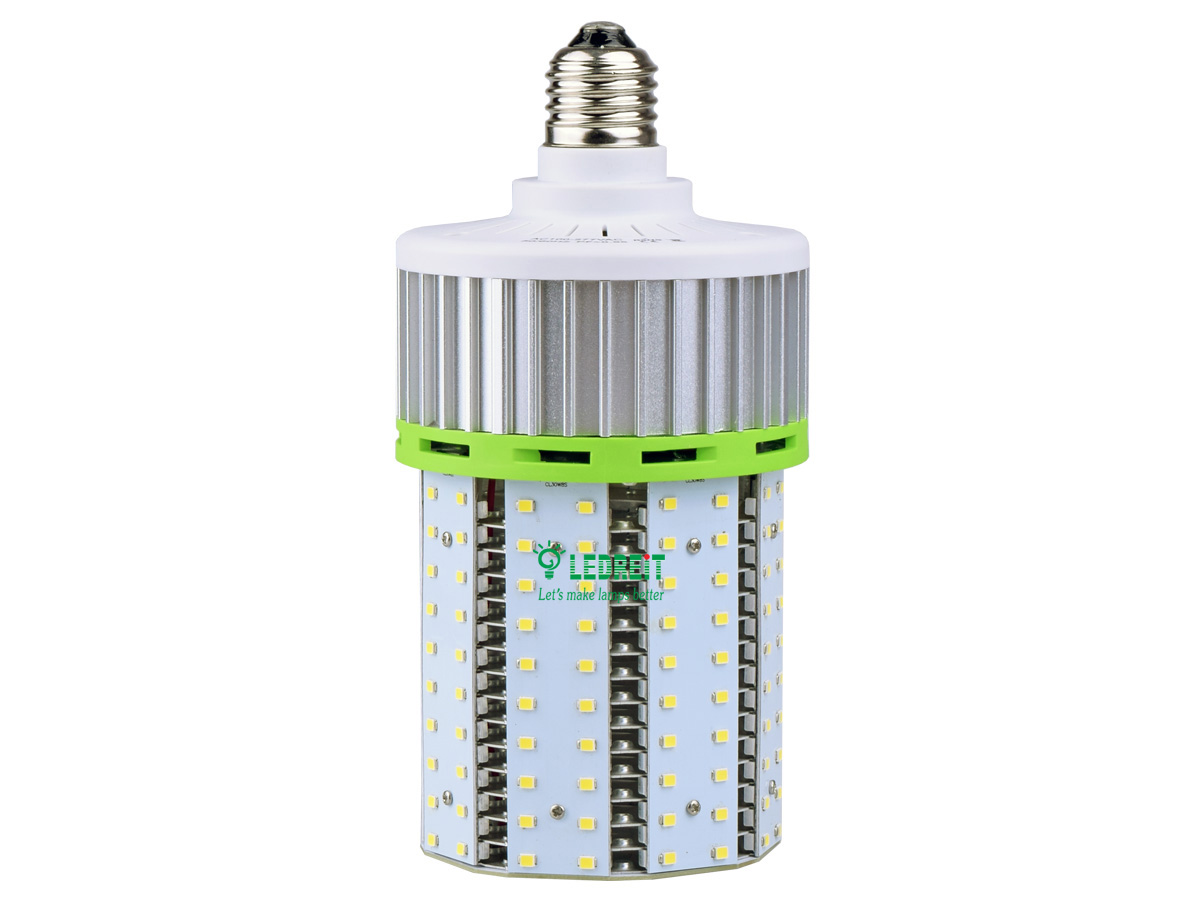

| Features |
• >125lm/w, 150lm/w is available.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature(Reduce the current).
• Aluminum heat sink with fins.
• Sealing glue helps improve the fixture's efficiency while dissipating heat.
• Clear or diffused or no cover available.

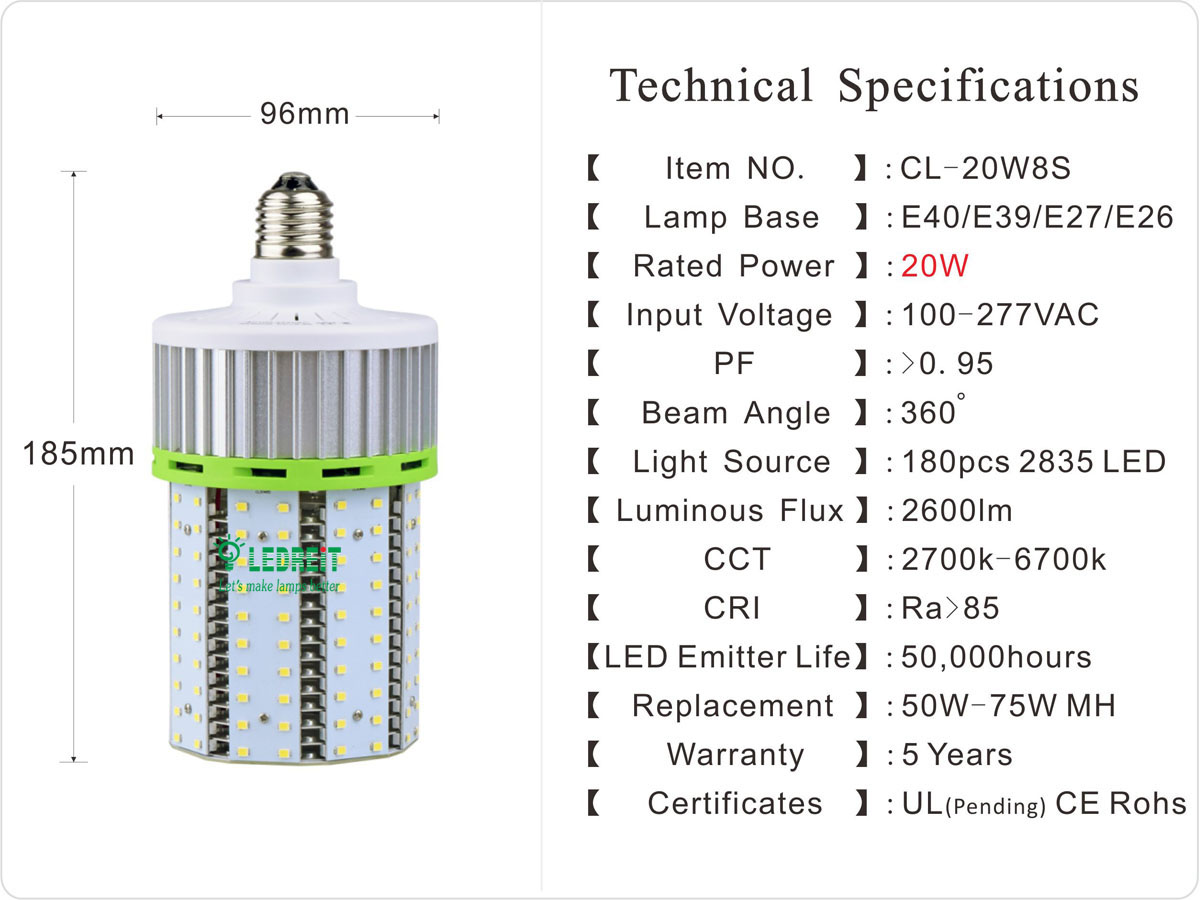

| Dimension |
| Technical Specifications |
|
Model NO.
|
CB-20W8S |
|
Rated Power
|
20W
|
|
Input Voltage
|
100-277Vac or 200-480Vac
|
|
Power Factor
|
PF>0.95
|
|
Power Efficiency
|
>88%
|
|
Beam Angle
|
360°
|
|
Lamp Base
|
E40/E39, E27/E26, Ex39
|
|
LED Luminous Efficiency
|
>125lm/w, 150lm/w is available
|
| Luminous Flux(125lm/w) | 2,600lm |
|
Luminous Flux(150lm/w)
|
3,000lm
|
|
Color Temperature Standard
|
WarmWhite: 2,700 3,500 K
|
|
Natural White: 4,000 4,500 K
|
|
|
Cool White: 5,500 6,700K
|
|
|
CRI
|
Ra>83
|
|
LED Emitter Life
|
50,000hours
|
|
Replacement
|
40-60w HID,CFL
|
|
Working Environment
|
Indoor/Outdoor Lighting
|
|
Operating Temperature
|
-40~50℃
|
|
Dimensions
|
Φ96*155mm/Φ3.7*6.0inch
|
|
Warranty
|
5 years factory warranty
|

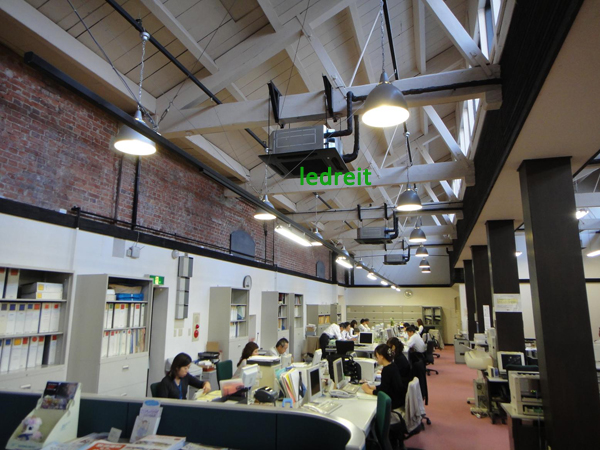

| Applications |
Indoor lighting.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting
| The relevant product parameters |
|
Model NO.
|
CB-20W8S | CB-30W8S | CB-40W8S | CB-50W8S | CB-60W8S | CB-80W10S |
|
Rated Power
|
20W | 30W | 40W | 50W | 60W | 80W |
|
Luminous Flux(125lm/w)
|
2,600lm | 3,800lm | 5,100lm | 6,200lm | 7,500lm | 10,000lm |
|
Luminous Flux(150lm/w)
|
3,000lm | 4,500lm | 6,000lm | 7,500lm | 9,000lm | 12,000lm |
|
Replacement
|
40-60w HID/CFL | 75-105w MH/HPS | 125-150w MH/HPS | 175-225w MH/HPS | 225-250w MH/HPS | 250-275W HID/CFL |
| Dimensions |
Φ96*155mm Φ3.7*6.0inch |
Φ96*155mm Φ3.7*6.0inch |
Φ96*210mm Φ3.7*8.0inch |
Φ96*210mm Φ3.7*8.0inch |
Φ96*210mm Φ3.7*8.0inch |
Φ128*260mm Φ5.0*10.2inch |
|
Power Factor
|
PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 |
|
Beam Angle
|
360° | 360° | 360° | 360° | 360° | 360° |
|
Lamp Base
|
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
E40/E39, |
E40/E39, E27/E26, Ex39 |
| CRI | Ra>83 | Ra>83 | Ra>83 | Ra>83 | Ra>83 | Ra>83 |
|
Model NO.
|
CB-100W10S | CB-120W10S | CB-150W10S | CB-180W10S | CB-200W10S | CB-240W10S |
|
Rated Power
|
100W | 120W | 150W | 180W | 200W | 240W |
|
Luminous Flux(125lm/w)
|
13,000lm | 15,000lm | 20,000lm | 23,000lm | 26,000lm | 30,000lm |
|
Luminous Flux(150lm/w)
|
15,000lm | 18,000lm | 22,500lm | 27,000lm | 30,000lm | 36,000lm |
|
Replacement
|
300-350w MH8HPS | 350-400w MH/HPS | 400-500w MH/HPS | 500W-600W MH/HPS | 550-750w MH/HPS | 750w MH/HPS |
| Dimensions |
Φ128*283mm Φ5.0*11.1inch |
Φ128*315mm Φ5.0*12.4inch |
Φ128*325mm Φ5.0*12.8inch |
Φ128*340mm Φ5.0*13.4inch |
Φ128*340mm Φ5.0*13.4inch |
Φ128*400mm Φ5.0*15.8inch |
|
Power Factor
|
PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 |
|
Beam Angle
|
360° | 360° | 360° | 360° | 360° | 360° |
|
Lamp Base
|
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
| CRI | Ra>83 | Ra>83 | Ra>83 | Ra>83 | Ra>83 | Ra>83 |
