| Features |
• >125lm/w, 150lm/w is available.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature(Reduce the current).
• Aluminum heat sink with fins.
• Sealing glue helps improve the fixture's efficiency while dissipating heat.
• Clear or diffused or no cover available.
| Technical Specifications |
|

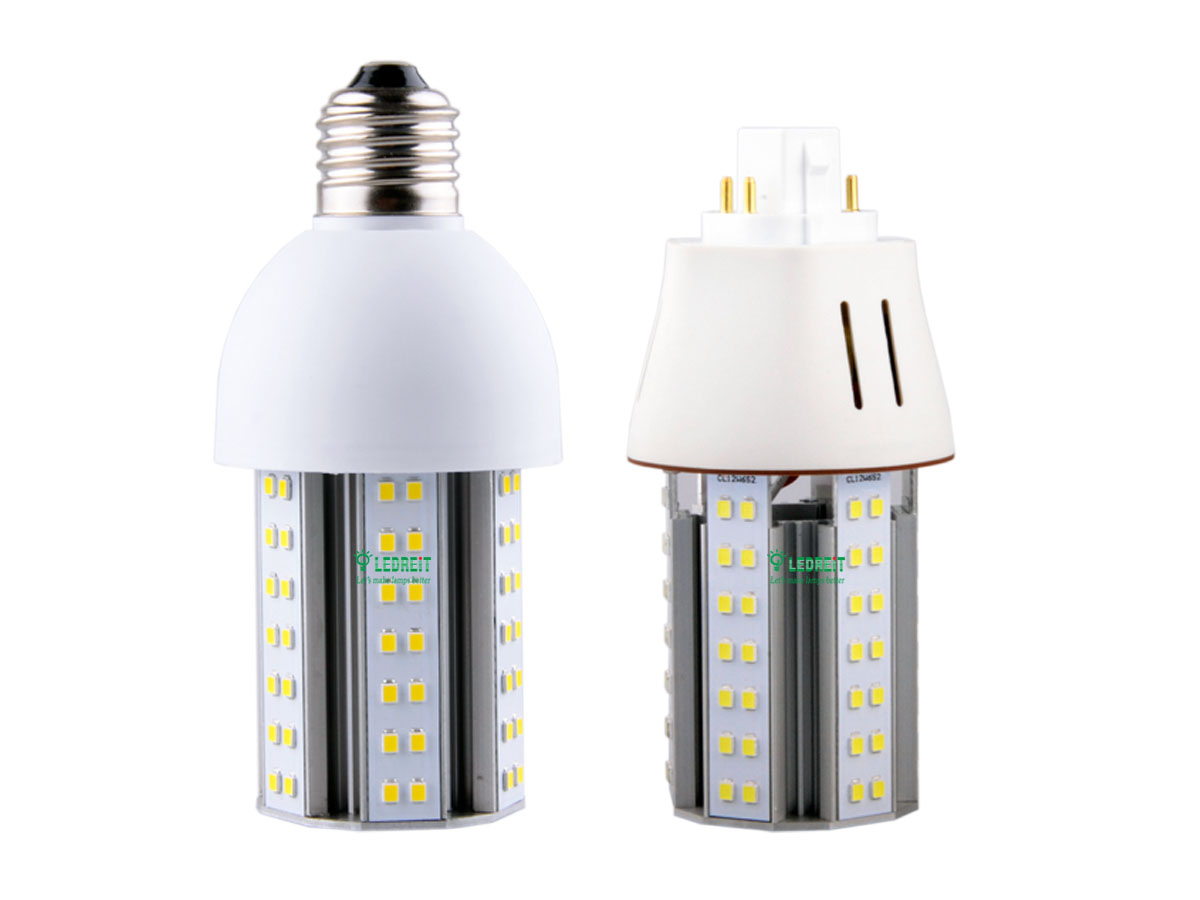

Model NO.
|
CB-15W |
|
Rated Power
|
15W
|
|
Input Voltage
|
100-277Vac or 200-480Vac
|
|
Power Factor
|
PF>0.95
|
|
Power Efficiency
|
>88%
|
|
Beam Angle
|
360°
|
|
Lamp Base
|
E27/E26, G24q, G24d
|
|
LED Luminous Efficiency
|
>125lm/w, 150lm/w is available
|
| Luminous Flux(125lm/w) | 1,850lm |
|
Luminous Flux(150lm/w)
|
2,200lm
|
|
Color Temperature Standard
|
WarmWhite: 2,700 3,500 K
|
|
Natural White: 4,000 4,500 K
|
|
|
Cool White: 5,500 6,700K
|
|
|
CRI
|
Ra>83
|
|
LED Emitter Life
|
50,000hours
|
|
Operating Temperature
|
-40~50℃
|
|
Dimensions
|
Dia 62 * L 150 mm
|
|
Warranty
|
5 years factory warranty
|
| Applications |
Indoor lighting.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting
| The relevant product parameters |
|
Model NO.
|
CB-6W | CB-8W | CB-9W | CB-10W | CB-12W | CB-15W |
|
Rated Power
|
6W | 8W | 9W | 10W | 12W | 15W |
|
Luminous Flux(125lm/w)
|
750lm | 1,050lm | 1,100lm | 1,300lm | 1,500lm | 1,850lm |
|
Luminous Flux(150lm/w)
|
900lm | 1,200lm | 1,400lm | 1,500lm | 1,800lm | 2,200lm |
| Dimensions |
Dia40*L 100mm |
Dia48*L 118mm |
Dia48*L 128mm |
Dia48*L 128mm |
Dia62*L 140mm |
Dia62*L 150mm |
|
Power Factor
|
PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 |
|
Beam Angle
|
360° | 360° | 360° | 360° | 360° | 360° |
|
Lamp Base
|
E27/E26, |
E27/E26, |
E27/E26, |
E27/E26, |
E27/E26, |
E27/E26, |
| CRI | Ra>83 | Ra>83 | Ra>83 | Ra>83 | Ra>83 | Ra>83 |
