| Product Features |

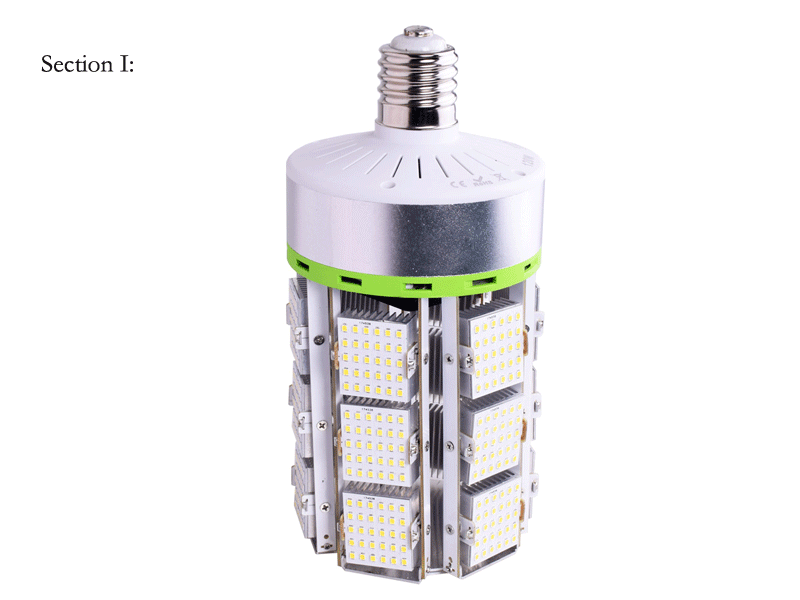

This LED bulb is tailored to replace MH,HPS,HID,CFL lamp etc.,for all outdoor and indoor fixture.(no matter the base is up or down).
• Can adjust any beam angle that you need.
• >125lm/w, 150lm/w is available.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature(Reduce the current).
• Sealing glue helps improve the fixture's efficiency while dissipating heat.
• Clear or diffused or no cover available.
• CCT: 2700K-6700K, Amber / Green color
| Technical Specifications |
| Item No. | CL-120W |
| Rated Power | 120W |
| Input Voltage | 100-277Vac, 200-480Vac |
| Power Factor | PF>0.95 |
| LED Luminous Efficiency | 125lm/w or 150lm/w |
| Lamp Base | E40/E39, E27/E26, Ex39 |
| Luminous Flux(125lm/w) | 15,600lm |
| Luminous Flux(150lm/w) | 18,000lm |
| Color Temperature | 2200K, 2700K, 3000k, 4000k, 4500k, 5000k, 5700k, 6500k |
| Color Rendering Index(CRI) | Ra＞83 |
| LED Emitter Life | >50,000 hours |
| Replacement | 350-400w MH, HPS |
| Dimension | Φ128*312mm/Φ5.0*12.3inch |
| Warranty | 5 years factory warranty |
| Dimension |
| Applications |
This LED bulb can be applied for all different Canopy fixtures, high bay,low bay fixtures, pole lighting fixture to replace MH HPS HID lamp.
| Lighting Efficiency |
While use the lamp for Vertical installation, you can adjust any beam angle that you need.
| The relevant product parameters |
| Item No. | Watts | Power Factor | Luminous Flux (125lm/w) |
Luminous Flux (150lm/w) |
Replacement | CRI |
| CL-30W | 30w | PF>0.95 | 3,800lm | 4,500lm | 75-105w MH,HPS | Ra>83 |
| CL-40W | 40w | PF>0.95 | 5,100lm | 6,000lm | 125-150w MH,HPS | Ra>83 |
| CL-50W | 50w | PF>0.95 | 6,200lm | 7,500lm | 175-225w MH,HPS | Ra>83 |
| CL-60W | 60w | PF>0.95 | 7,500lm | 9,000lm | 225-250w MH,HPS | Ra>83 |
| CL-80W | 80W | PF>0.95 | 10,400lm | 12,000lm | 250-300w MH,HPS | Ra>83 |
| CL-100W | 100W | PF>0.95 | 13,000lm | 15,000lm | 300-350w MH,HPS | Ra>83 |
| CL-120W | 120W | PF>0.95 | 15,600lm | 18,000lm | 350-400w MH,HPS | Ra>83 |
