| Retrofit LED Lighting |
Out with the old, in with the newest – the future of lighting is now.
LED troffer retrofit lamps are direct replacements for conventional fluorescent lamps.
LEDs deliver higher lumens per watt (lm/W) which means significant energy savings while lasting more than ten times longer than incandescent sources.
With their directional light, instant on and ability to dim, LEDs are fast becoming the light source of choice.
| Product Features |
Delivers >2000 lumens of light and over 125 lumens per watt.
Ideal for upgrading 1x4 , 2x2 and 2x4 lay-in fixtures to energy saving LEDs .
Quick and easy transition to energy efficient LEDs.

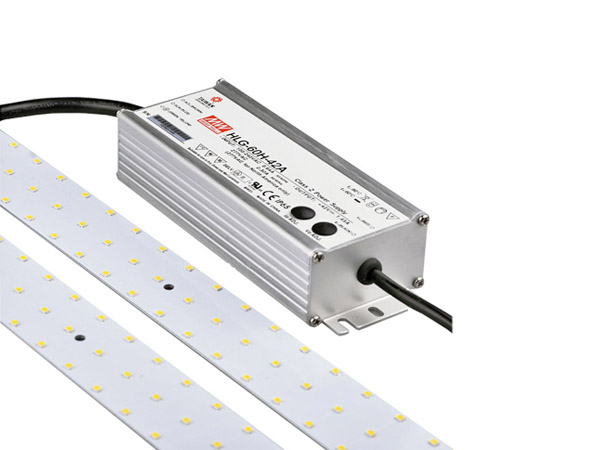

LED troffer retrofit kit use your existing linear fluorescent fixtures.
Easy install with dimmable LED driver.
| Technical Specifications |
| Item No. | TF-20W-600mm |
| Input Voltage | External Driver 100-277VAC 50/60Hz |
| Power Factor | PF>0.95 |
| Light Source | 210pcs LED/Epistar Chip |
| LED Luminous Efficiency | >100lm/w |
| Luminous Flux | 2500lm±10% |
| Color Temperature Standard | WarmWhite: 2,700-3,500 K |
| Natural White: 4,000-4,500 K | |
| Cool White: 5,500-6,700K | |
| Color Rendering Index(CRI) | Ra>83 |
| LED Emitter Life | 50,000hours |
| Replacement | 50W-85W fluorescent lamp |
| Working Environment | Indoor lighting |
| Operating Temperature | -40~50℃ |
| The Dimensions | 38*558mm /1.5"*22" |
| Applications |

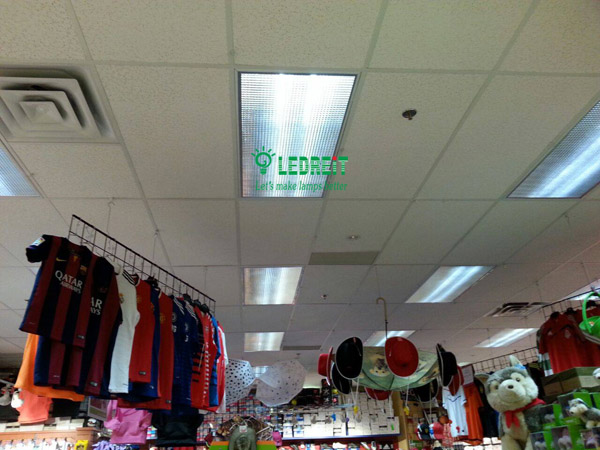

Use in new construction or retrofit applications
Troffer fixture/Medallions/T-grid drop ceilings
Other applications
| The relevant product parameters |
| Model NO. | TF-16W-1200mm | TF-20W-1200mm | TF-30W-1200mm | TF-16W-600mm | TF-20W-600mm |
| Rated Power | 16W | 20W | 30W | 16W | 20W |
| Light Source | 168pcs LED/Epistar Chip | 210pcs LED/Epistar Chip | 315pcs LED/Epistar Chip | 168pcs LED/Epistar Chip | 210pcs LED/Epistar Chip |
| Luminous Flux | 2000 lm±10% | 2500 lm±10% | 3750 lm±10% | 2000 lm±10% | 2500 lm±10% |
| Replacement | 35W-50W Metal Halide/HPS | 50W-85WMetal Halide/HPS | 80W-125WMetal Halide/HPS | 35W-50W Metal Halide/HPS | 50W-85WMetal Halide/HPS |
| The Dimensions | 38*1130mm /1.5"*44"
|
38*558mm /1.5"*22" | |||
