Features |
• >130lm/w.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature.

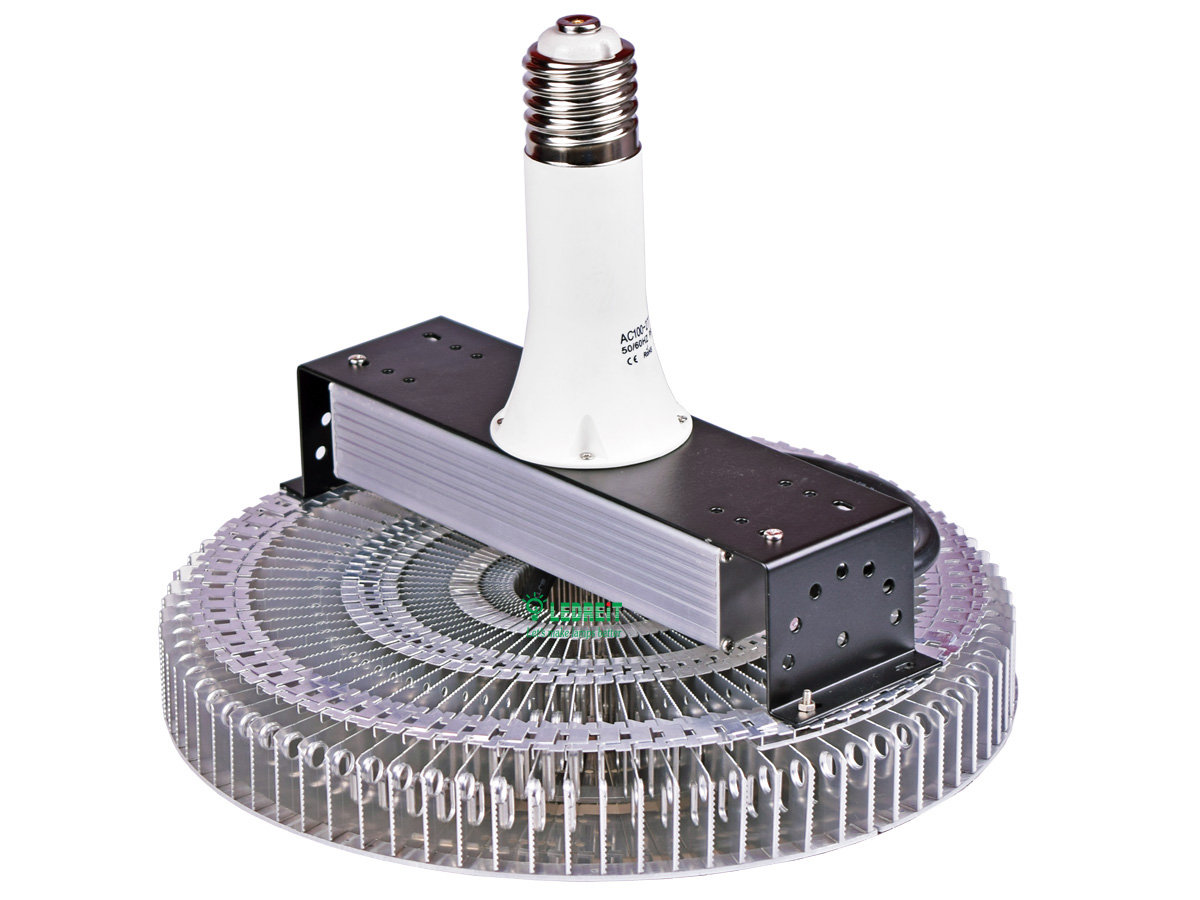

• Aluminum heat sink with fins.
• Meanwell driver and Samsung led chip.
• Clear or diffused or no cover available.
Dimension |
Technical Specifications |
Model NO.
|
YPD-60W |
Rated Power
|
60W
|
Input Voltage
|
100-277Vac or 200-480Vac
|
Power Factor
|
PF>0.95
|
Lamp Base
|
E40/E39, E27/E26, Ex39
|
LED | Samsung led |
LED Luminous Efficiency
|
>130lm/w
|
Luminous Flux(125lm/w) | 7,800lm |
Color Temperature Standard
|
WarmWhite: 2,700 3,500 K
|
Natural White: 4,000 4,500 K
|
|
Cool White: 5,500 6,700K
|
|
CRI
|
Ra>83
|
LED Emitter Life
|
50,000hours
|
Replacement
|
225-250w HID, CFL
|
Working Environment
|
Indoor/Outdoor Lighting
|
Operating Temperature
|
-40~50℃
|
Dimensions
|
300*245mm/11.8*9.6inch |
Warranty
|
5 years factory warranty
|

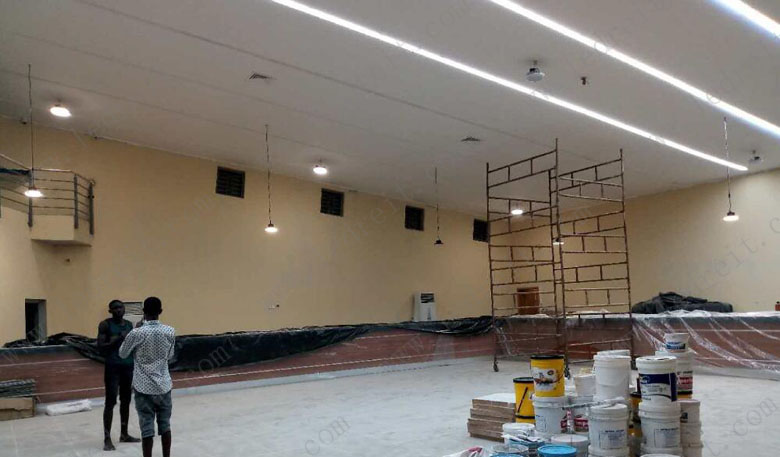

Applications |
Indoor lighting.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting
The relevant product parameters |
Model NO.
|
YPD-60W | YPD-80W | YPD-100W | YPD-120W | YPD-150W |
Rated Power
|
60W | 80W | 100W | 120W | 150W |
LED | Samsung led | Samsung led | Samsung led | Samsung led | Samsung led |
LED Luminous Efficiency | >130lm/w | >130lm/w | >130lm/w | >130lm/w | >130lm/w |
Luminous Flux
|
7,800lm | 11,000lm | 13,000lm | 15,000lm | 20,000lm |
Replacement
|
225-250w |
275-300w MH, HPS |
350-400w MH, HPS |
400-450w MH, HPS |
400-500w MH, HPS |
Power Factor
|
PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 |
Lamp Base
|
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
E40/E39, E27/E26, Ex39 |
E40/E39, |
CRI | Ra>83 | Ra>83 | Ra>83 | Ra>83 | Ra>83 |
Warranty | 5 years factory warranty | 5 years factory warranty | 5 years factory warranty | 5 years factory warranty | 5 years factory warranty |
