Description

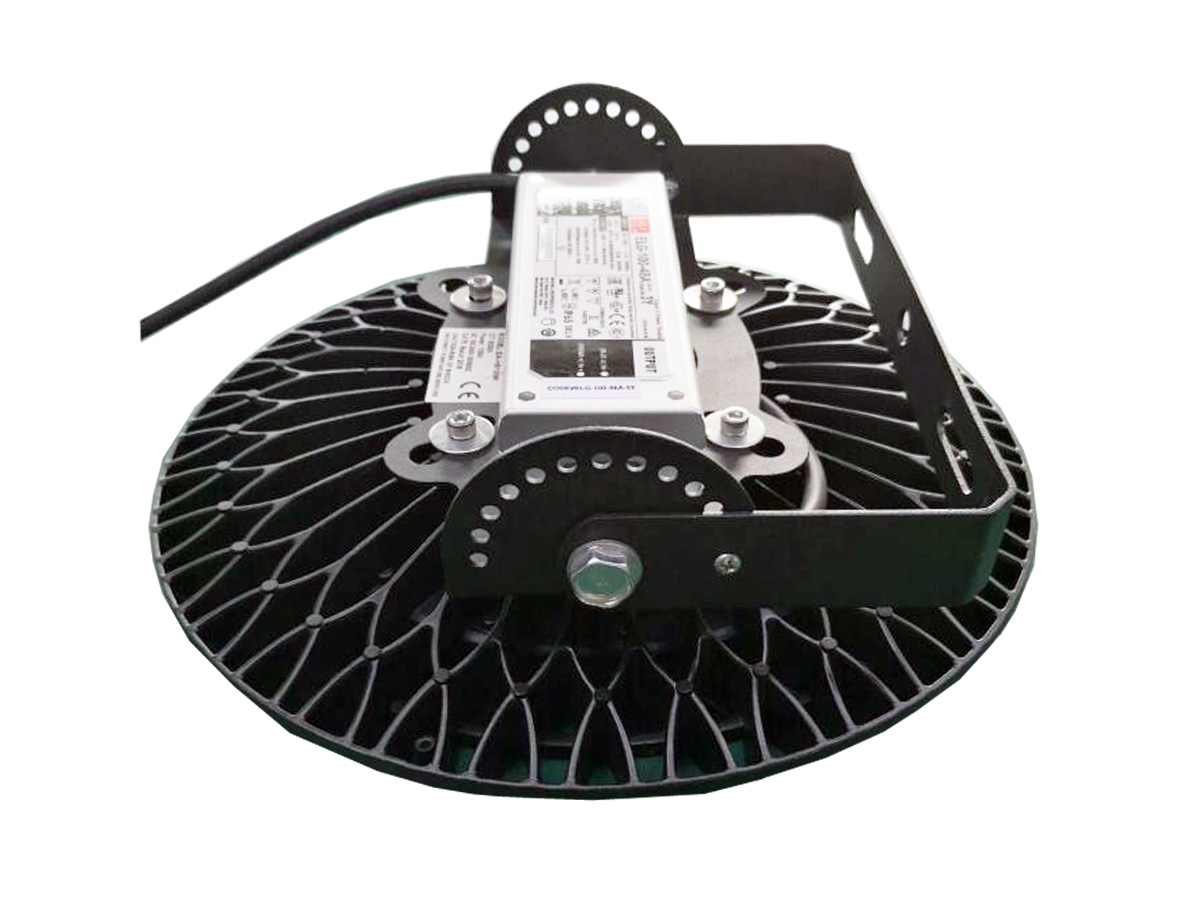

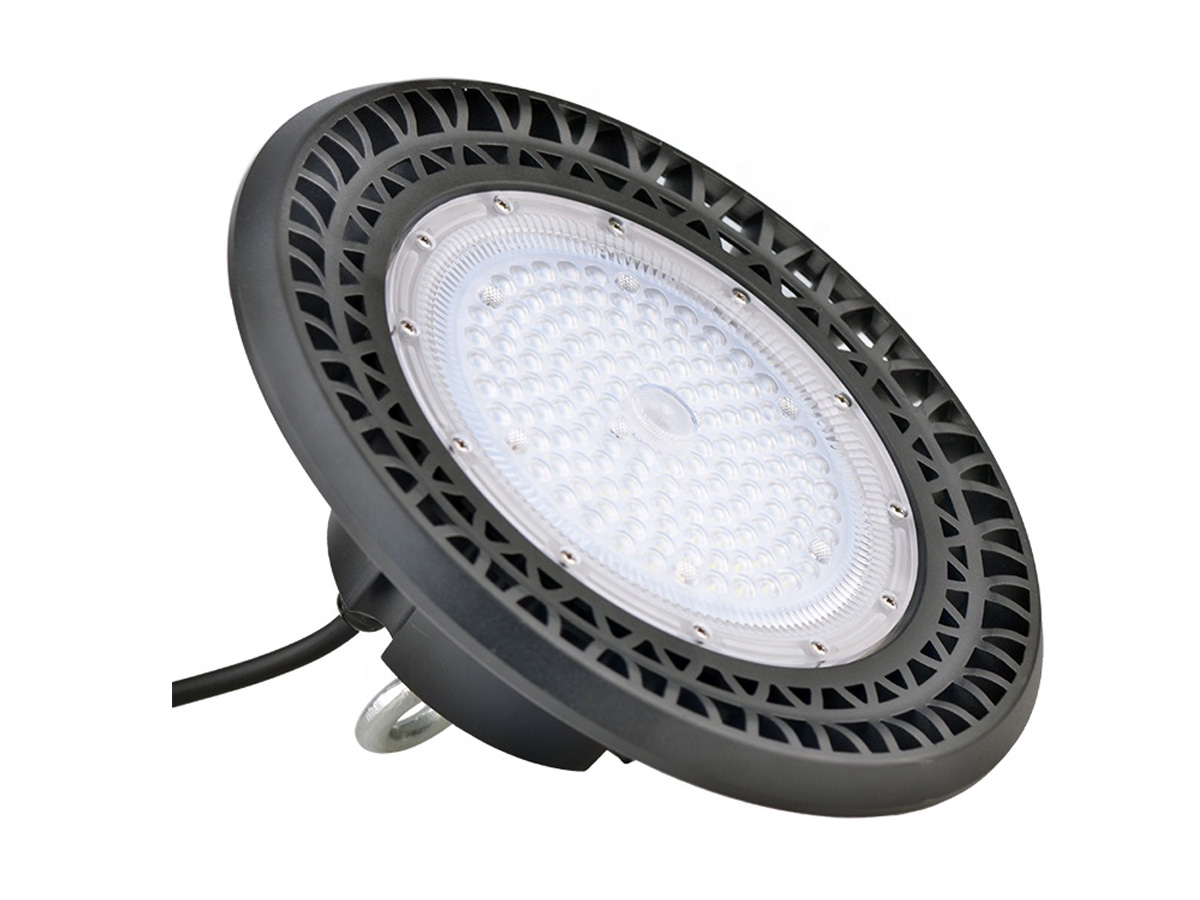

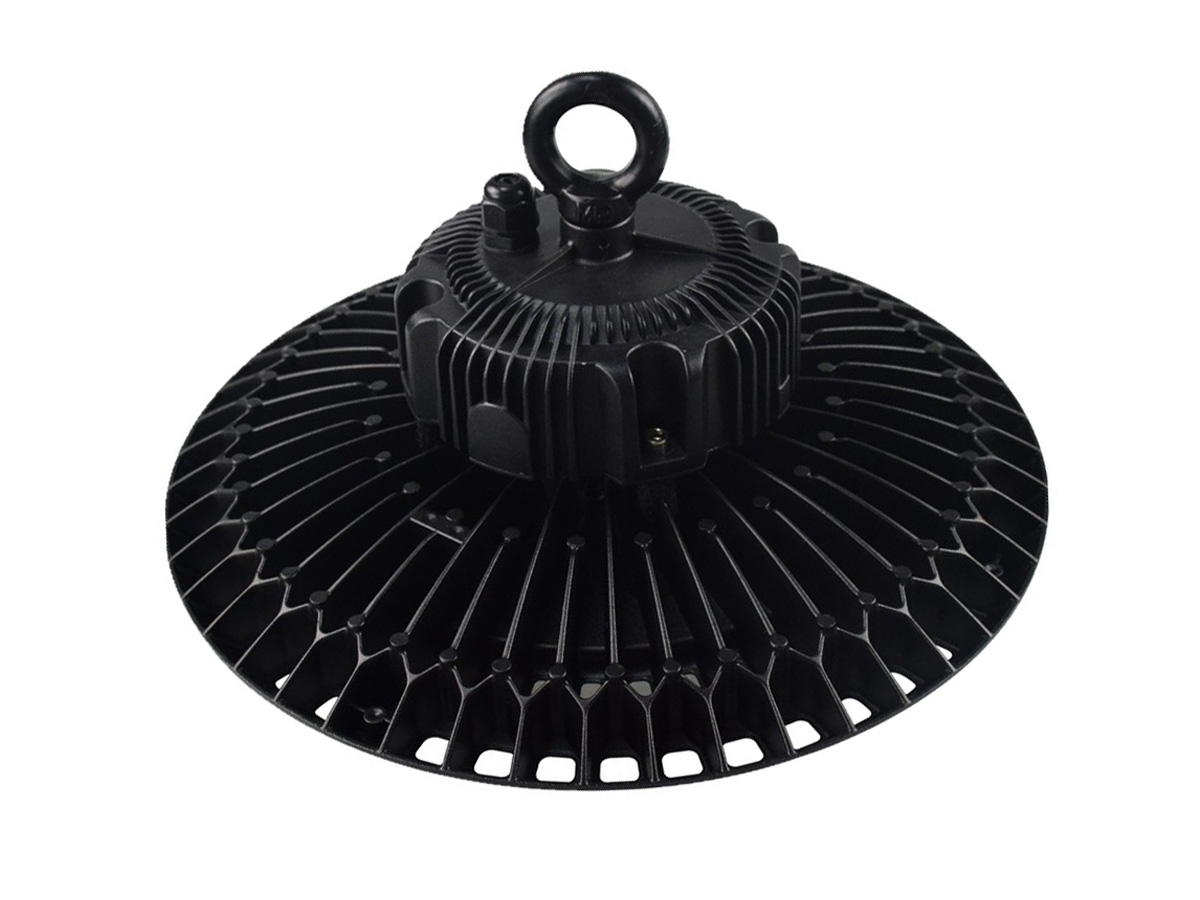

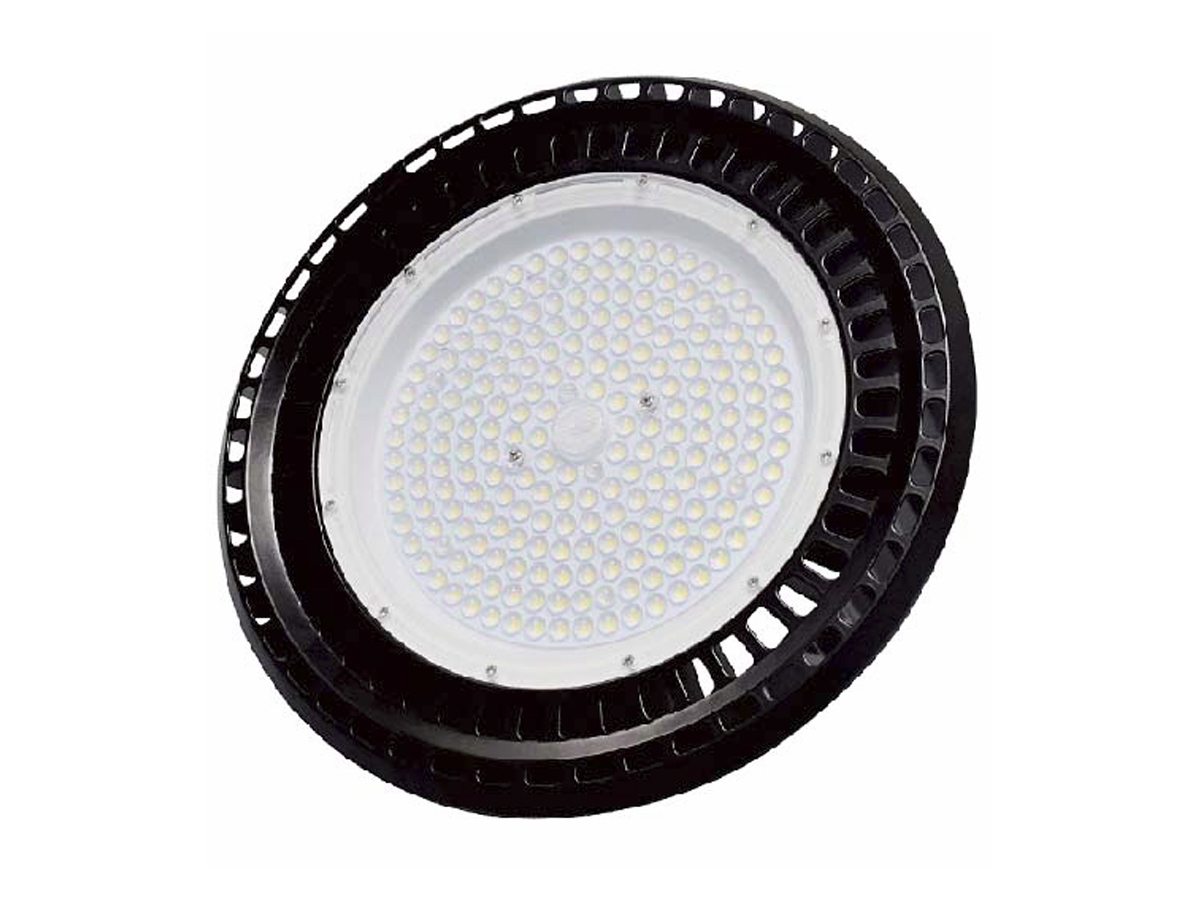

UFO High Bay new


Features


•>130lm/w.
•Universal AC input 100-277Vac or 200-480Vac
•Protections: Short circuit / Over current / Over temperature.
•Meanwell driver and Osram led chip.
•45 / 60 / 90 /120 degree option.
•Clear or diffused cover.

 UFO High Bay new
01



Dimension

UFO High Bay new
02



Specification data
Item No. UFO-100W
Rated Power 100W
Input Voltage 100-277Vac or 200-480Vac.
Input Current 2.0A / 115VAC ; 1.0A / 230VAC ; 0.75A / 277VAC
Power Factor PF>0.95
Power Efficiency >93%
Beam Angle 45 / 60 / 90 /120 degree
Lamp Base Wires
LED Luminous Efficiency >130lm/w
Luminous Flux 13,000lm
Color Temperature Standard 2,700k
3,000 K
4,000 K
5,000K
5,700K
Color Rendering Index(CRI) Ra>83
LED Emitter Life 50,000hours
Replacement 250-350W MH, HPS
Diameter Dia 280mm
Working Environment Indoor lighting
Operating Temperature -40~50℃



Why us?

 UFO High Bay Why us



Microwave sensore + dimming

 UFO High Bay Microwave sensore dimming



Light Distribution curve

 UFO High Bay Light Distribution Curve



Applications


High/Low Bay Lighting/Sports Lighting/Factories Lighting
Other applications

 UFO High Bay Applications



The relevant product parameters
Item No. Watts Power Factor Luminous Flux(130lm/w) Replacement Diameter CRI
UFO-60W 60W PF>0.95 7,800lm 175-250w MH, HPS Dia 235mm Ra>83
UFO-100W 100W PF>0.95 13,000lm 250-350w MH, HPS Dia 280mm Ra>83
UFO-120W 120W PF>0.95 15,600lm 300-350w MH, HPS Dia 340mm Ra>83
UFO-150W 150W PF>0.95 19,500lm 300-400W MH, HPS Dia 340mm Ra>83
UFO-160W 160w PF>0.95 20,500lm 350-450w MH, HPS Dia 340mm Ra>83
UFO-200W 200w PF>0.95 26,000lm 450-600w MH, HPS Dia 400mm Ra>83
UFO-240W 240W PF>0.95 31,000lm 600-750w MH, HPS Dia 400mm Ra>83
