Description

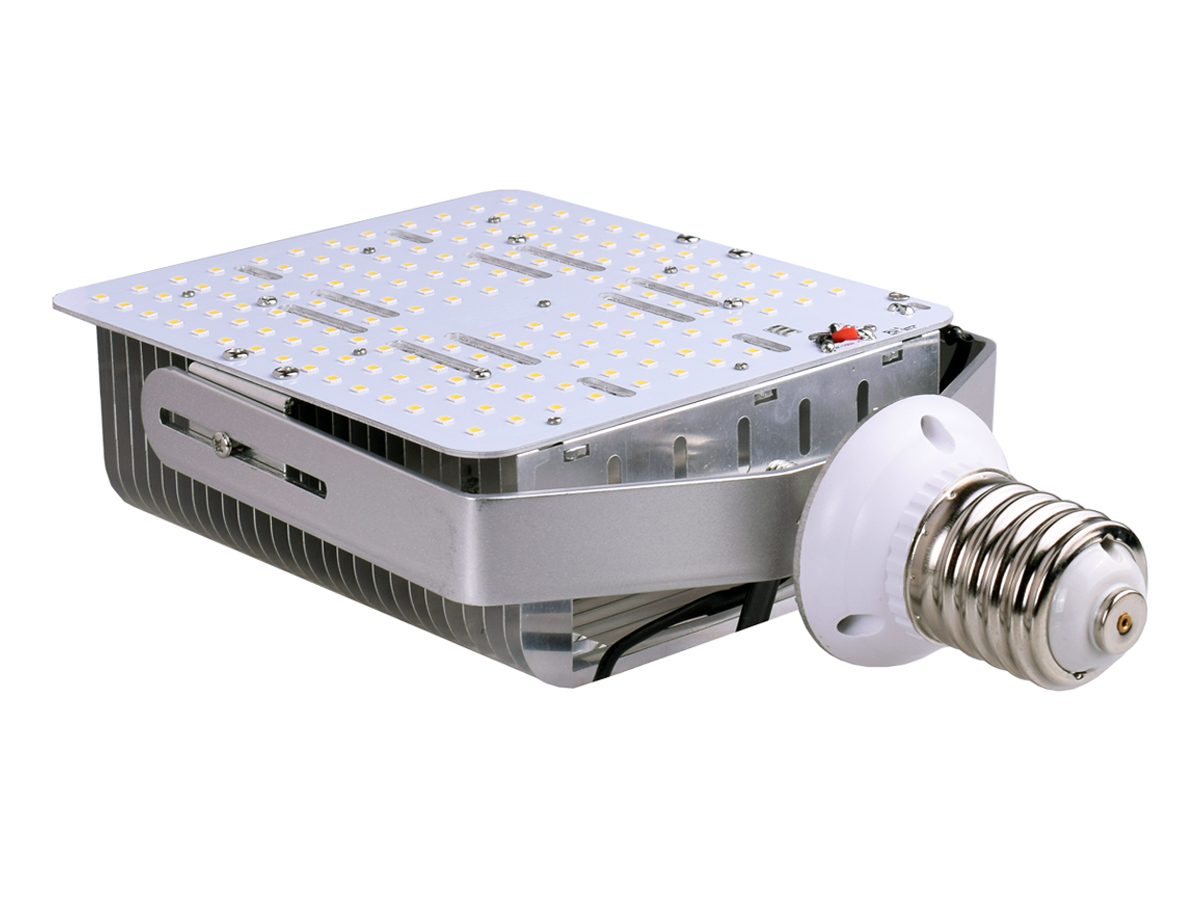

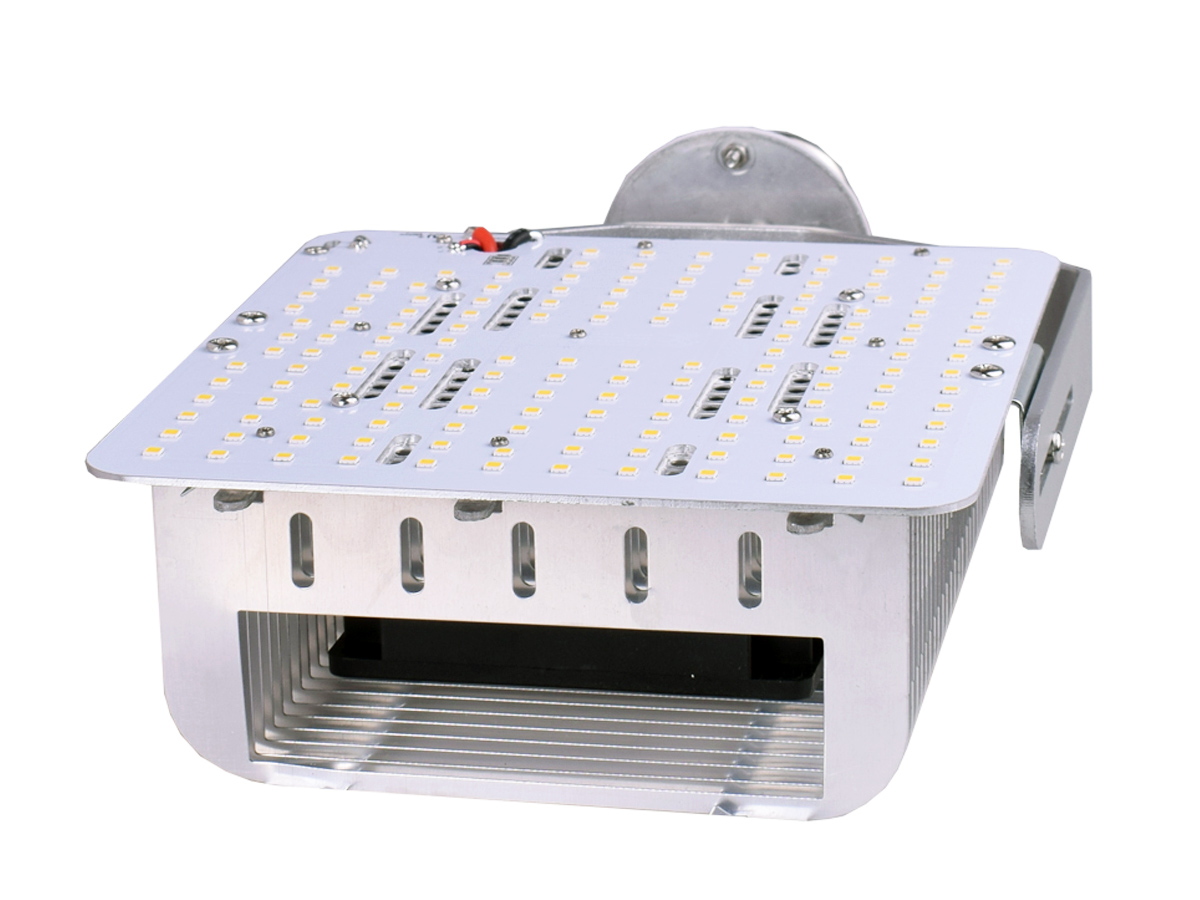

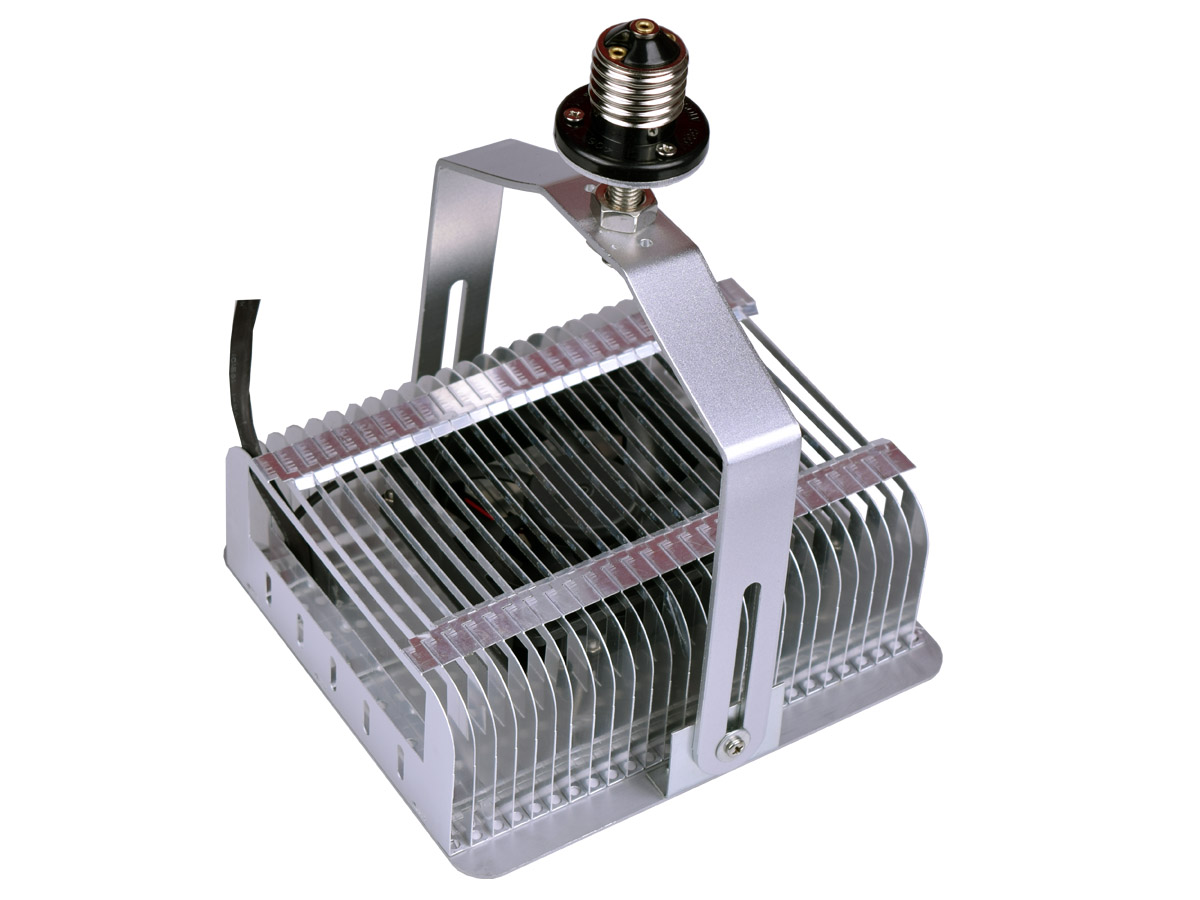

Led Retrofit kit 02



Features

• >125lm/w.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature.
• Aluminum heat sink with fins.
• Meanwell driver and Osram led chip.
• 2.0 high thermal conducvity PCB.


Technical Specifications
Item No. RK-120W
Rated Power 120W
Input Voltage 100-277Vac or 200-480Vac
Power Factor PF>0.95
Lamp Base E40/E39, E27/E26,Ex39
LED Luminous Efficiency >125lm/w
Luminous Flux(125lm/w) 15,000lm
Luminous Flux(150lm/w) 18,000lm
Color Temperature Standard WarmWhite: 3000k, 4000k,
Natural White: 4500k, 5000k
Cool White: 5700k, 6500k
Color Rendering Index(CRI) Ra>83
LED Emitter Life 50,000hours
Replacement 400-450w MH, HPS
Working Environment Indoor/Outdoor Lighting
Operating Temperature -40~50℃
The Dimensions 280*170*62mm
Warranty 5 years factory warranty



Commercial Lighting Retrofit Details
Led Retrofit kit 01

Applications



Led Retrofit kit 03



Certificate

120W Led Retrofit Kit
Certificate



The relevant product parameters
Model NO. RK-200W
Rated Power
350W
300W
240W
200W
Light Source/Count

CREE / Osram

CREE / Osram
CREE / Osram
CREE / Osram
LED Luminous Efficiency >125lm/w >125lm/w >125lm/w >125lm/w
Luminous Flux(125lm/w) 43,750lm 37,500lm 30,000lm 25,000lm
Replacement
1000W-1200W MH/HPS
900W-1000W MH/HPS
700-750w MH, HPS
600-700w MH, HPS
Input Voltage 100-277Vac or 200-480Vac 100-277Vac or 200-480Vac 100-277Vac or 200-480Vac 100-277Vac or 200-480Vac
Power Efficiency
>88%
>88%
>88%
>88%
Lamp Base E40/E39, E27/E26, Ex39
E40/E39, E27/E26, Ex39
E40/E39, E27/E26,Ex39
E40/E39,E27/E26,Ex39
CRI
Ra>83
Ra>83
Ra>83
Ra>83
Dimensions
270*270*178mm
10.6*10.6*7inch
270*270*178mm
10.6*10.6*7inch
270*270*178mm
10.6*10.6*7inch
270*270*178mm
10.6*10.6*7inch
LED Emitter Life 50,000hours 50,000hours 50,000hours 50,000hours
Warranty
5 years factory warranty
5 years factory warranty
5 years factory warranty
5 years factory warranty

Model NO. RK-150W RK-120W RK-100W RK-80W RK-60W
Rated Power 150W 120W 100W 80W 60W
LED Luminous Efficiency >125lm/w >125lm/w >125lm/w >125lm/w >125lm/w
Luminous Flux(125lm/w) 18,750lm 15,000lm 12,500lm 10,000lm 7,500lm
Luminous Flux(150lm/w) 22,500lm 18,000lm 15,000lm 12,000lm 9,000lm
Replacement 450W-500w MH/HPS 400W-450w MH/HPS 350W-400w MH/HPS 275W-300w MH/HPS 225-250w HID/CFL
Input Voltage 100-277Vac or 200-480Vac 100-277Vac or 200-480Vac 100-277Vac or 200-480Vac 100-277Vac or 200-480Vac 100-277Vac or 200-480Vac
Power Efficiency >88% >88% >88% >88% >88%
Lamp Base E40/E39, E27/E26,Ex39 E40/E39, E27/E26,Ex39 E40/E39, E27/E26,Ex39 E40/E39, E27/E26,Ex39 E40/E39, E27/E26,Ex39
CRI Ra>83 Ra>83 Ra>83 Ra>83 Ra>83
Dimensions 280*170*62mm 280*170*62mm 280*170*62mm 280*170*62mm 280*170*62mm
LED Emitter Life 50,000hours 50,000hours 50,000hours 50,000hours 50,000hours
Warranty 5 years factory warranty 5 years factory warranty 5 years factory warranty 5 years factory warranty 5 years factory warranty
