Beam angle:120 degrees

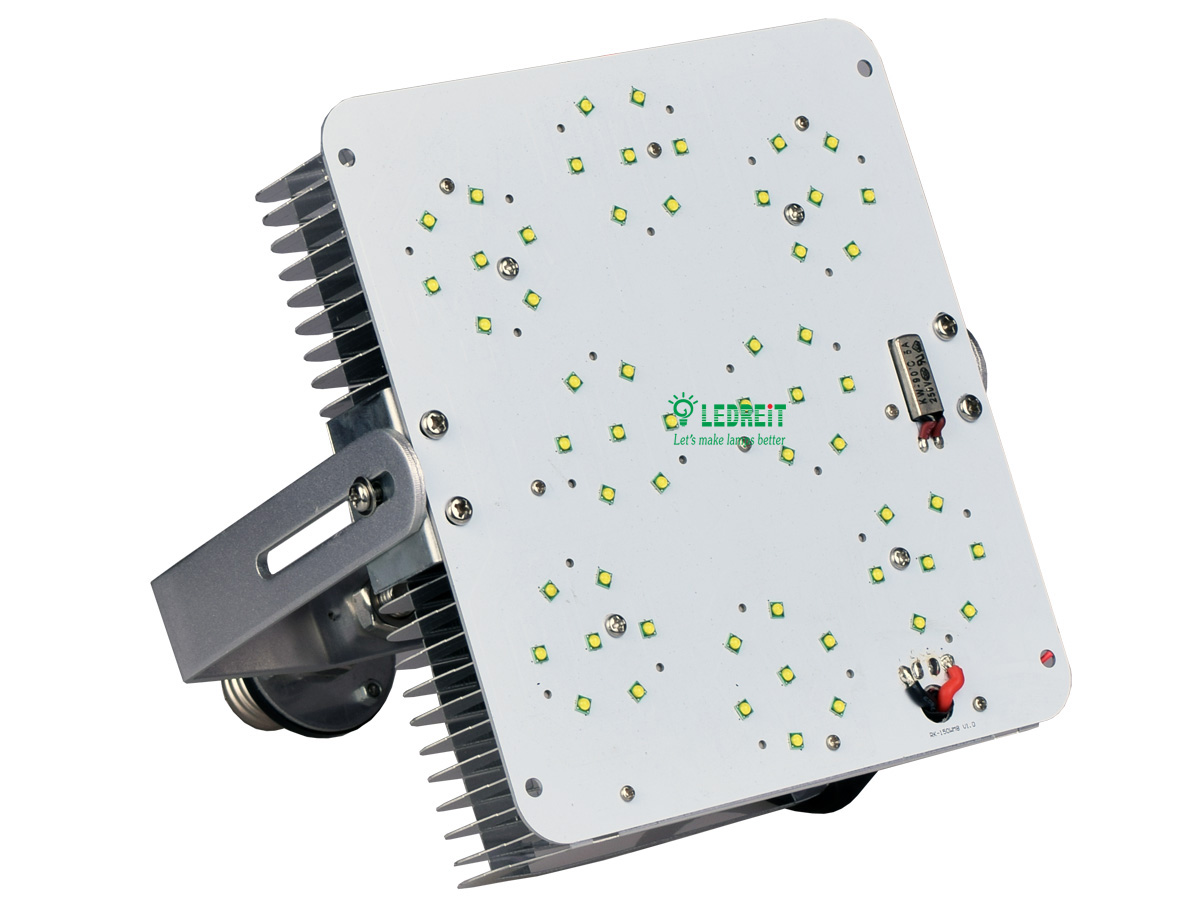

Fin aluminum heat and active air exchanging cooling system in order to speed up heat dissipation.
Universal AC input / Full range(UP to 295VAC)
Protections: Short circuit / Over current/ Over temperature
Wide colour availability in degrees Kelvin(K),2700-6700K
lighting retrofit major to replace the Metal Halide/HPS with screwed lamp base directly
| Applications |
Warehouse, indoor lighting, street landscape.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting
| Technical Specifications |
|
Rated Power
|
80W
|
|
Input Voltage
|
100-277VAC / 50-60Hz
|
|
Power Factor
|
PF>0.95
|
|
Beam Angle
|
120°
|
|
Light Source/Count
|
42pcs LED/CREE Chip
|
|
Lamp Base
|
E40 / E39 / E27 / E26
|
|
LED Luminous Efficiency
|
>135lm/w
|
|
Luminous Flux
|
10800 lm±10%
|
|
Color Temperature Standard
|
WarmWhite: 2,700 3,500 K
|
|
Natural White: 4,000 4,500 K
|
|
|
Cool White: 5,500 6,700K
|
|
|
CRI
|
Ra>83
|
|
LED Emitter Life
|
50,000hours
|
|
Replacement
|
275W-300W Metal Halide/HPS
|
|
Working Environment
|
Indoor/Outdoor Lighting
|
|
Operating Temperature
|
-40~50℃
|
|
Dimensions
|
280*170*62mm
|
|
Warranty
|
5 years factory warranty
|
| The relevant product parameters |
| Model NO. | ||||
| Rated Power |
350W
|
300W
|
240W
|
|
| Light Source/Count |
140pcs LED/Osram/ |
140pcs LED/Osram/
Cree LED chip |
140pcs LED/Osram/
Cree LED chip |
|
| Luminous Flux |
42000 lm±10%
|
36000 lm±10%
|
28800 lm±10%
|
|
| Replacement |
1000W-1350W MH/HPS
|
900W-1200W MH/HPS
|
600W-750W MH/HPS
|
|
| Input Voltage | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | |
| Power Efficiency |
>88%
|
>88%
|
>88%
|
|
| Beam Angle |
120°
|
120°
|
120°
|
|
| Lamp Base |
E40 / E39
|
E40 / E39
|
E40 / E39
|
|
| LED Luminous Efficiency |
>120lm/w
|
>120lm/w
|
>120lm/w
|
|
| CRI |
Ra>83
|
Ra>83
|
Ra>83
|
|
| Dimensions |
270*270*178mm
10.6*10.6*7inch |
270*270*178mm
10.6*10.6*7inch |
270*270*178mm
10.6*10.6*7inch |
|
| LED Emitter Life | 50,000hours | 50,000hours | 50,000hours | |
| Warranty |
5 years factory warranty
|
5 years factory warranty
|
5 years factory warranty
|
|
| Model NO. | RK-150W | RK-120W | RK-100W | RK-80W |
| Rated Power | 150W | 120W | 100W | 80W |
| Light Source/Count | Osram/Cree LED chip | Osram/Cree LED chip | Osram/Cree LED chip | Osram/Cree LED chip |
| Luminous Flux | 20250lm±10% | 16200lm±10% | 13500lm±10% | 10800lm±10% |
| Replacement | 450W-500w MH/HPS | 400W-450w MH/HPS | 350W-400w MH/HPS | 275W-300w MH/HPS |
| Input Voltage | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz | 100-277VAC / 50-60Hz |
| Power Efficiency | >88% | >88% | >88% | >88% |
| Beam Angle | 120° | 120° | 120° | 120° |
| Lamp Base | E40 / E39 | E40 / E39 | E40 / E39 | E40 / E39 |
| LED Luminous Efficiency | >135lm/w | >135lm/w | >135lm/w | >135lm/w |
| CRI | Ra>83 | Ra>83 | Ra>83 | Ra>83 |
| Dimensions | 280*170*62mm | 280*170*62mm | 280*170*62mm | 280*170*62mm |
| LED Emitter Life | 50,000hours | 50,000hours | 50,000hours | 50,000hours |
| Warranty | 5 years factory warranty | 5 years factory warranty | 5 years factory warranty | 5 years factory warranty |
